SKU: SBPFT201.TRI

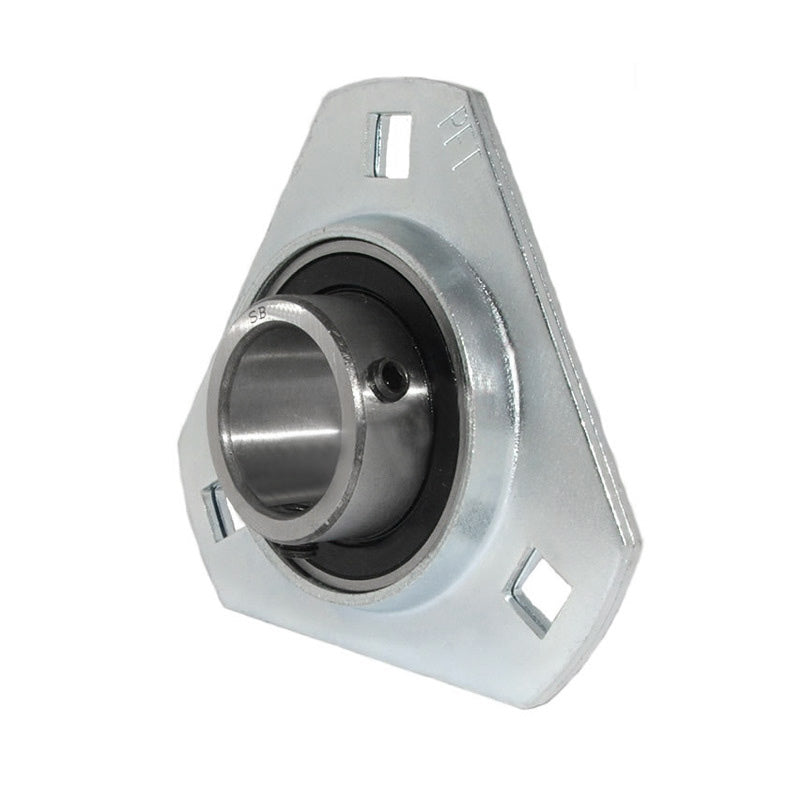

SBPFT201 Pressed Steel 3 Bolt Triangle Flange Housing with 12mm insert
SBPFT201 Pressed Steel 3 Bolt Triangle Flange Housing with 12mm insert
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
Equivalent to: SLFT12
In stock
Price Break
3+
€9,76
4+
€9,21
9+
€9,10
19+
€8,99
49+
€8,88
99+
€8,77
499+
€8,22
999+
€8,11
1999+
€8,00
2999+
€7,89
4999+
€7,68
Description
Description
|
3 Bolt Triangular Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
Equivalent: SLFT12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SBPFT
- Pitch Circle Diameter:
- 63.5mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 81mm |
| e | 63.5mm |
| w | 28.5mm |
| m | 14mm |
| s | 7.1mm |
| t | 4mm |
| f | 49mm |
| B | 22mm |
| n | 6mm |
| Bolt | M6 |
| Weight | 0.23 kg |
| Dynamic load | 750 N |
| Static load | 450 N |
