SKU: SCHB1.3/8-RHP

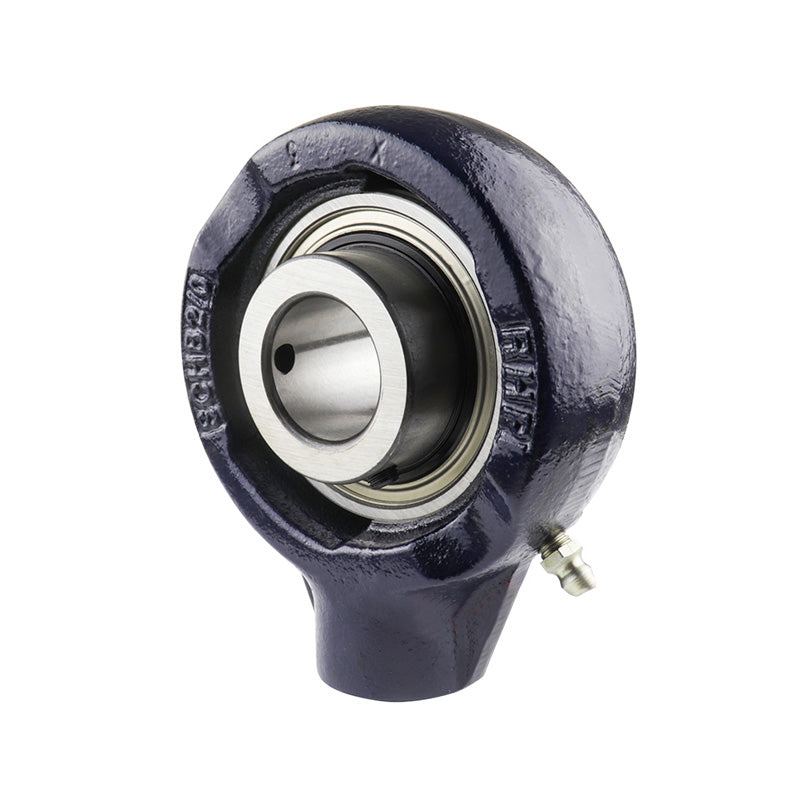

RHP SCHB1-3/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
RHP SCHB1-3/8 BSP Thread Cast Iron Hanger Bearing Unit and 1-3/8 inch Bore Insert 97mm Outside Diameter
Regular price
€94,95
ex VAT
Regular price
Sale price
€94,95
ex VAT
In stock
Price Break
10+
€71,64
20+
€67,62
30+
€66,81
40+
€66,01
50+
€65,20
75+
€64,40
100+
€60,37
200+
€59,57
250+
€58,76
500+
€57,96
1000+
€56,35
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 97mm
- Style:
- SCHB
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| G1 | 0.748 inch |
| L | 3.819 inch |
| H | 4.685 inch |
| H1 | 2.748 inch |
| Threads | 3/4 BSP |
| A | 1.555 inch |
| A1 | 1 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
