SKU: SCHB2.7/16-RHP

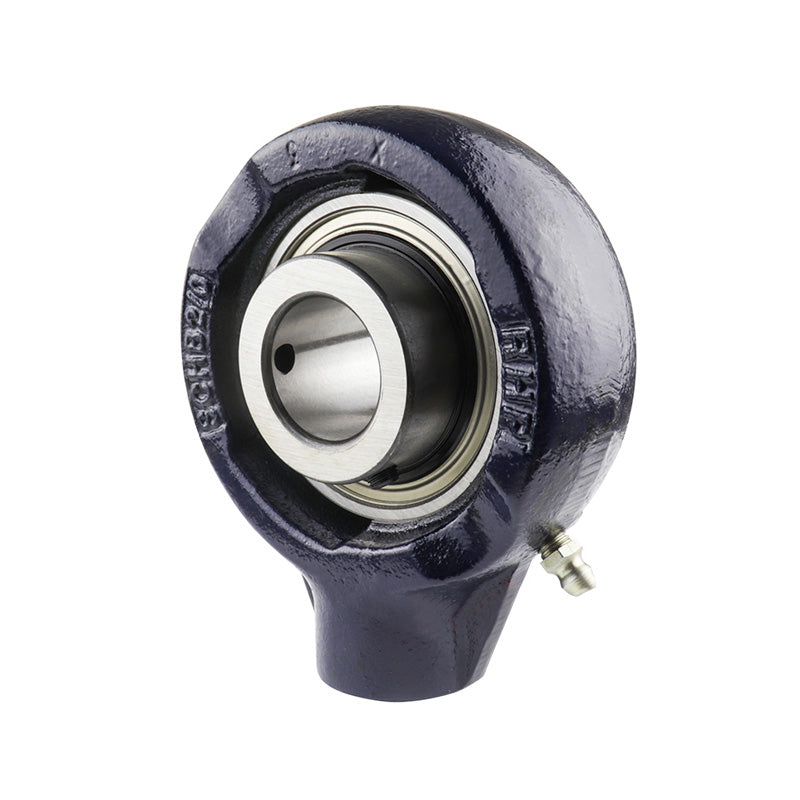

RHP SCHB2-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 2-7/16 inch Bore Insert 143mm Outside Diameter
RHP SCHB2-7/16 BSP Thread Cast Iron Hanger Bearing Unit and 2-7/16 inch Bore Insert 143mm Outside Diameter
Regular price
€200,95
ex VAT
Regular price
Sale price
€200,95
ex VAT
In stock
Price Break
10+
€152,48
20+
€143,91
30+
€142,20
40+
€140,48
50+
€138,77
75+
€137,06
100+
€128,49
200+
€126,78
250+
€125,07
500+
€123,35
1000+
€119,93
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 143mm
- Style:
- SCHB
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| G1 | 1.142 inch |
| L | 5.63 inch |
| H | 6.831 inch |
| H1 | 4 inch |
| Threads | 1-1/4 BSP |
| A | 2.303 inch |
| A1 | 1.218 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
