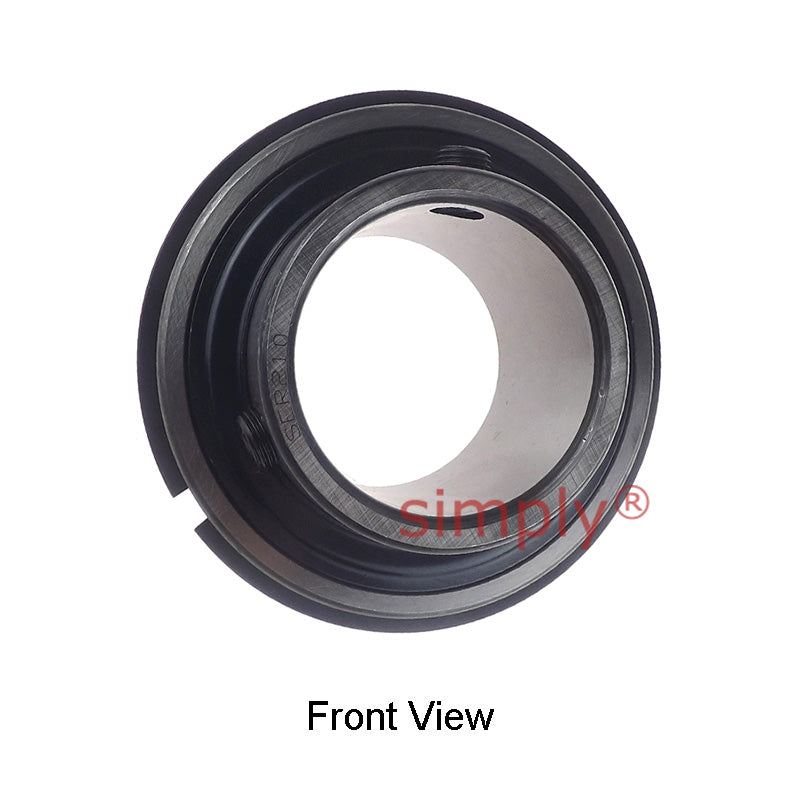

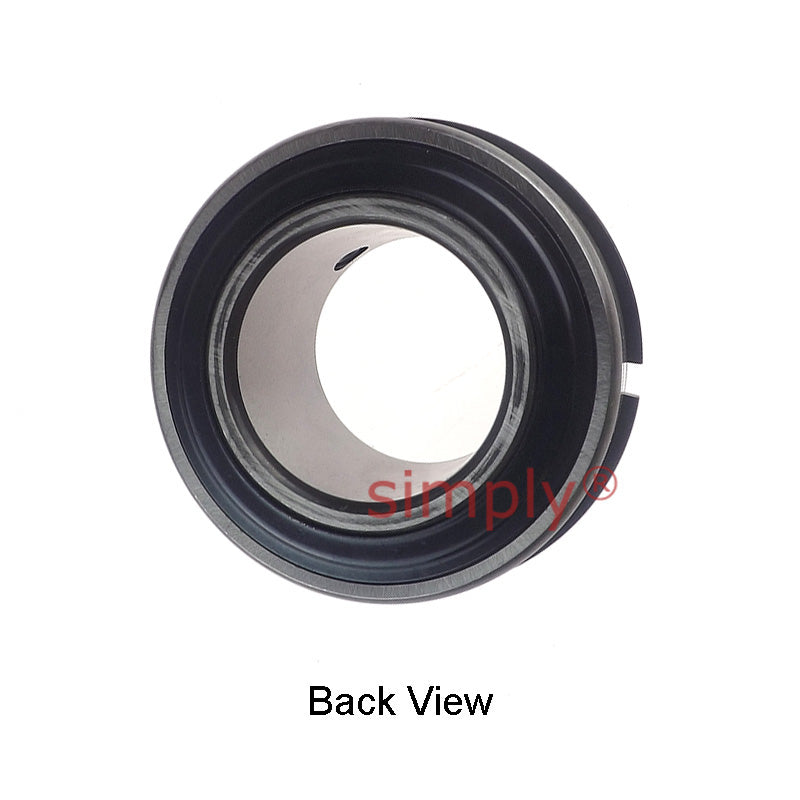

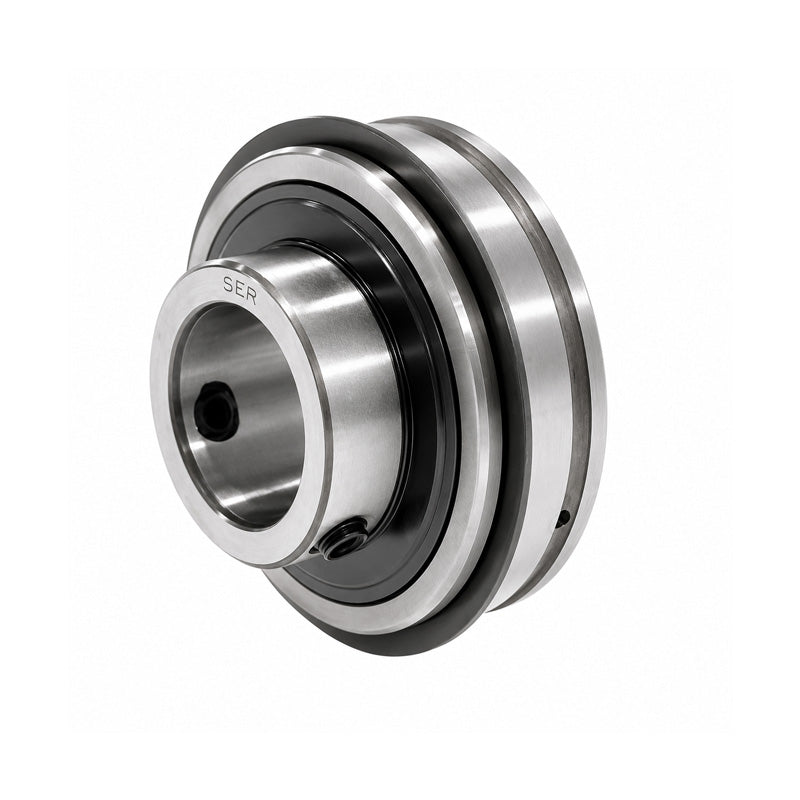

SER210 Metric Bearing Insert and Snap Ring 50mm Bore 90mm Outside Dia
SER210 Metric Bearing Insert and Snap Ring 50mm Bore 90mm Outside Dia
Regular price
€34,95
ex VAT
Regular price
Sale price
€34,95
ex VAT
In stock
Price Break
3+
€26,00
4+
€24,54
9+
€24,25
19+
€23,95
49+
€23,66
99+
€23,37
499+
€21,91
999+
€21,62
1999+
€21,33
2999+
€21,03
4999+
€20,45
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- SER
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 28.6mm |
| n | 19mm |
| m | 32.6mm |
| E | 22.62mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 8.32mm |
| J | 3.28mm |
| P | 96.5mm |
| G | 9.5mm |
| Grub screw | M10x1.0 |
| Weight | 0.93 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
