SKU: SIA50TXE-2LS-SKF

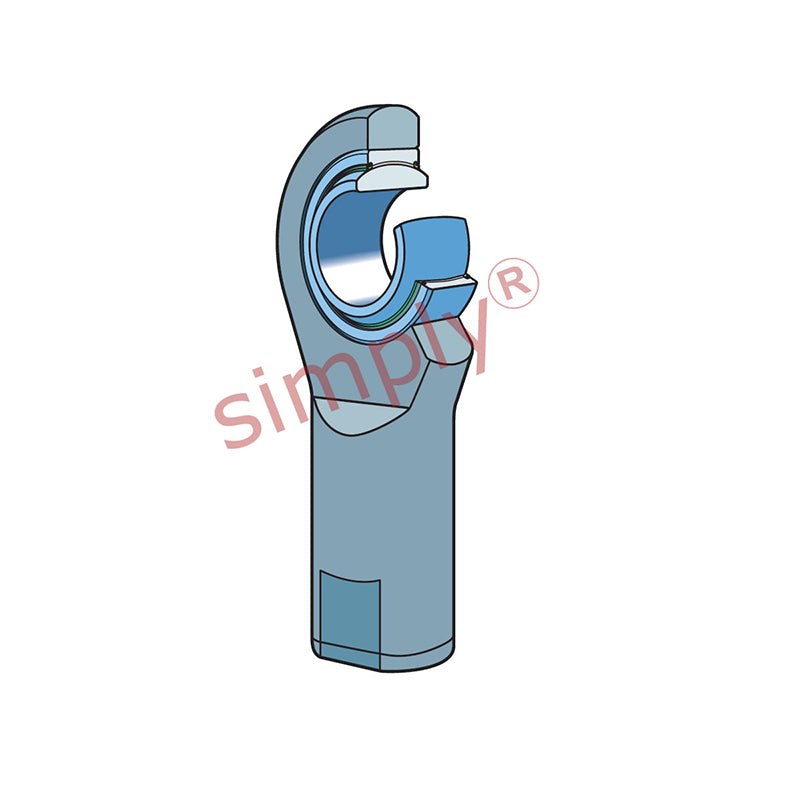

SKF SIA50TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M45x3 Thread
SKF SIA50TXE2LS Right Hand Steel / PTFE Fabric Lined Plain Female Rod End M45x3 Thread
Regular price
€484,95
ex VAT
Regular price
Sale price
€484,95
ex VAT
In stock
Price Break
10+
€368,94
19+
€348,21
29+
€344,07
39+
€339,92
49+
€335,78
74+
€331,63
99+
€310,90
199+
€306,76
249+
€302,61
499+
€298,47
999+
€290,18
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 50mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 50mm |
|---|---|
| d2 max | 114mm |
| G 6H | M45x3 |
| B | 35mm |
| C1 max | 31mm |
| h1 | 160mm |
| a | 6deg |
| Dynamic load C | 440 kN |
| Static load Co | 270 kN |
| Weight | 4.1 kg |
| dk | 66mm |
| d4 | 70mm |
| l3 min | 68mm |
| l4 max | 246mm |
| l5 | 30mm |
| l7 min | 58mm |
| r1 min | 0.6mm |
| w h14 | 60mm |
