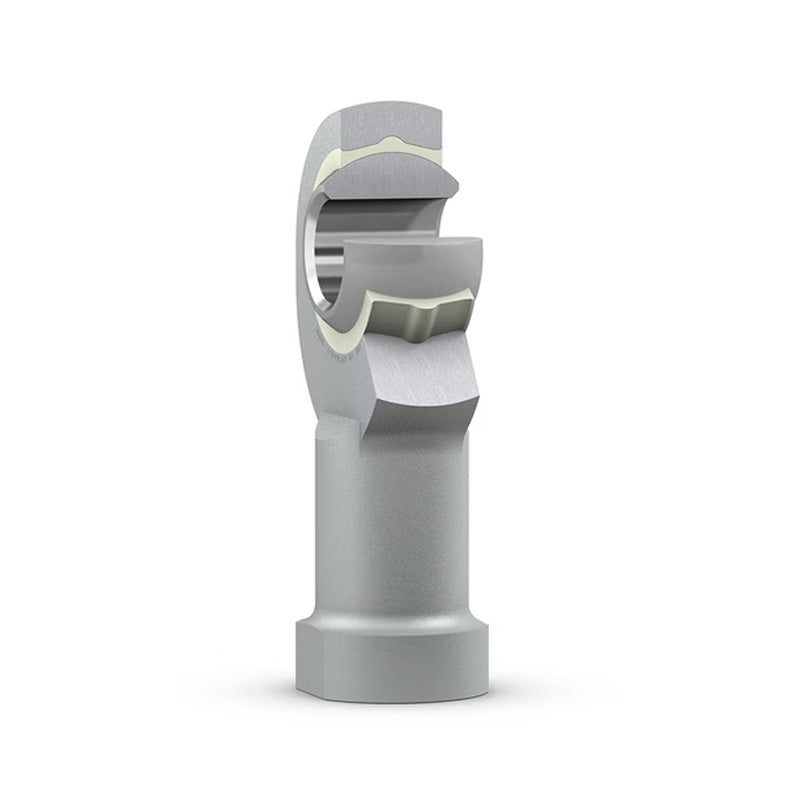

SKF SIKB18F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M18x1.5 Thread
SKF SIKB18F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M18x1.5 Thread
Regular price
€111,95
ex VAT
Regular price
Sale price
€111,95
ex VAT
Equivalent to: FS-M18
In stock
Price Break
10+
€85,17
19+
€80,38
29+
€79,43
39+
€78,47
49+
€77,51
74+
€76,56
99+
€71,77
199+
€70,82
249+
€69,86
499+
€68,90
999+
€66,99
Description
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Equivalent: FS-M18
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Material:
- PTFE FRP Lined

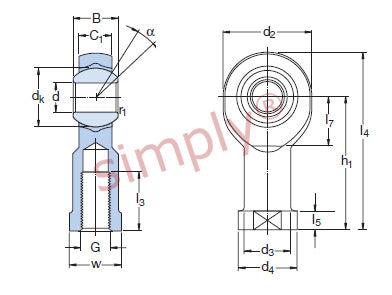

Technical
Technical
| d | 18mm |
|---|---|
| d2 max | 47mm |
| G | M18x1.5 |
| B | 23mm |
| C1 max | 16.5mm |
| h | 71mm |
| a | 15deg |
| Dynamic load C | 26 kN |
| Static load Co | 41.5 kN |
| Weight | 0.33 kg |
| dk | 31.7mm |
| d3 | 25mm |
| d4 max | 32mm |
| l3 min | 27mm |
| l4 max | 95mm |
| l5 | 10mm |
| l7 min | 23mm |
| r1 min | 0.3mm |
| w h14 | 27mm |
