SKU: SIL25C-CDX

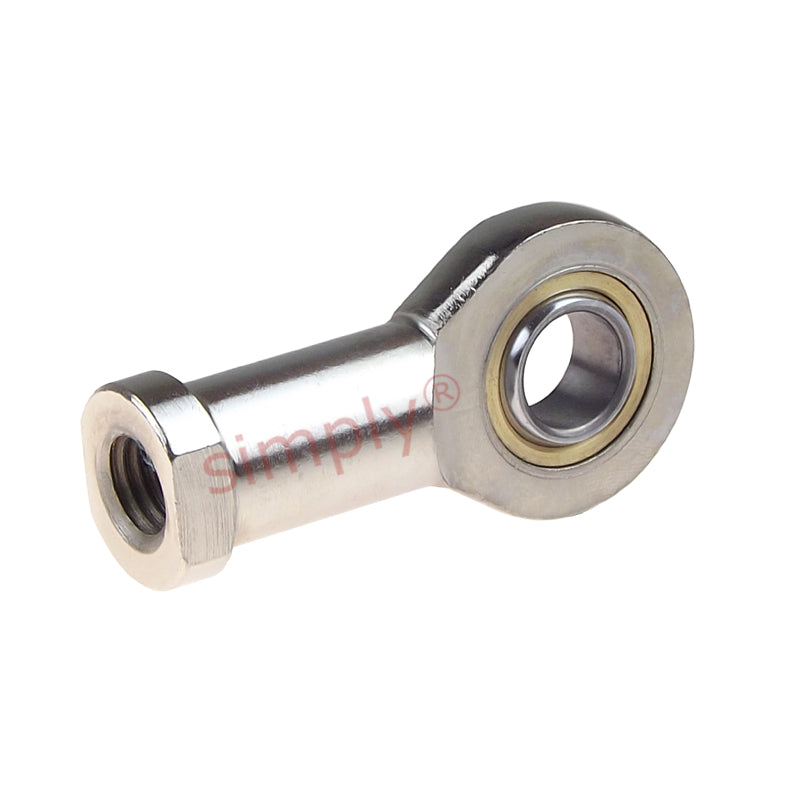

Codex SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Codex SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Regular price
€48,95
ex VAT
Regular price
Sale price
€48,95
ex VAT
Equivalent to: GIL25UK
In stock
Price Break
10+
€36,92
19+
€34,84
29+
€34,43
39+
€34,01
49+
€33,60
74+
€33,18
99+
€31,11
199+
€30,70
249+
€30,28
499+
€29,87
999+
€29,04
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL25UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| d2 max | 65mm |
| G | M24x2 |
| B | 20mm |
| C1 max | 18mm |
| h1 | 94mm |
| Max misalignment angle | 7 degrees |
| Dynamic load | 51 kN |
| Static load | 90 kN |
| dk | 35.5mm |
| d4 | 35mm |
| l3 min | 36mm |
| l4 max | 128mm |
| l5 | 18mm |
| l7 min | 30mm |
| r1 min | 0.6mm |
| w h14 | 30mm |
| Weight | 0.65 kg |
