SKU: SIL30C-SKF

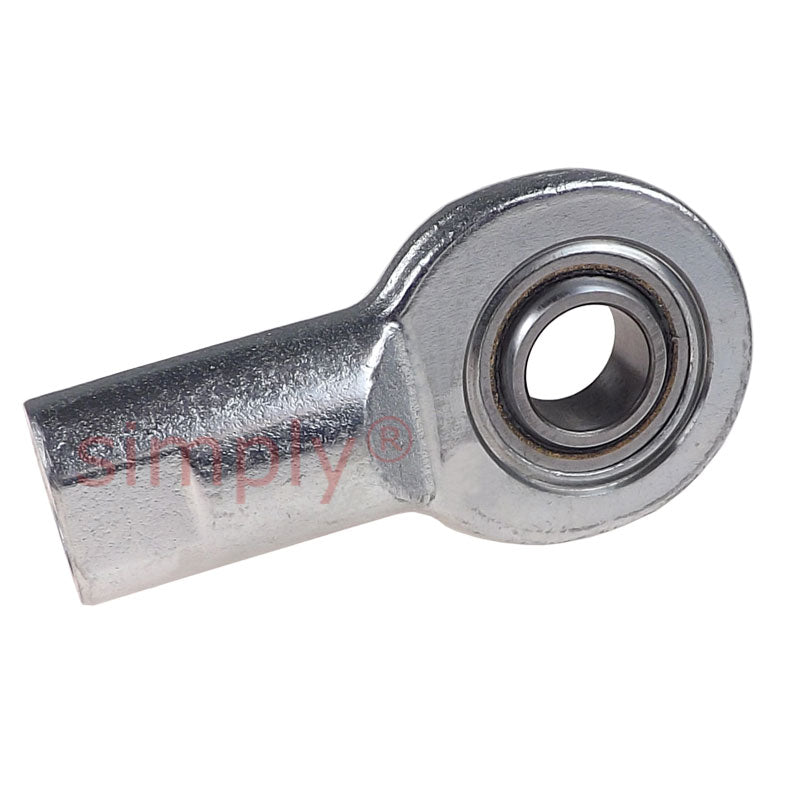

SKF SIL30C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M30x2 Thread
SKF SIL30C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M30x2 Thread
Regular price
€156,95
ex VAT
Regular price
Sale price
€156,95
ex VAT
In stock
Price Break
10+
€118,84
19+
€112,17
29+
€110,83
39+
€109,49
49+
€108,16
74+
€106,82
99+
€100,15
199+
€98,81
249+
€97,48
499+
€96,14
999+
€93,47
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 30mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 30mm |
|---|---|
| d2 max | 75mm |
| G 6H | M30x2 |
| B | 22mm |
| C1 max | 20mm |
| h1 | 110mm |
| a | 6deg |
| Dynamic load C | 65.5 kN |
| Static load Co | 118 kN |
| Weight | 1.05 kg |
| dk | 40.7mm |
| d4 | 42mm |
| l3 min | 45mm |
| l4 max | 149mm |
| l5 | 19mm |
| l7 min | 34mm |
| r1 min | 0.6mm |
| w h14 | 36mm |
