SKU: SIL6C-SKF

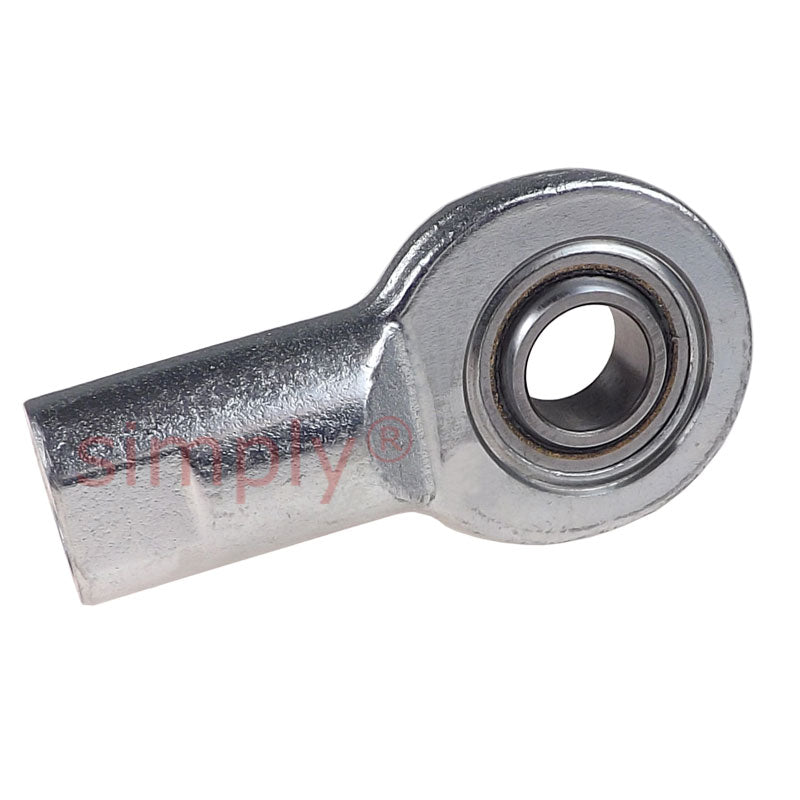

SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
Regular price
€85,95
ex VAT
Regular price
Sale price
€85,95
ex VAT
Equivalent to: GIL6UK
In stock
Price Break
10+
€65,15
19+
€61,49
29+
€60,76
39+
€60,03
49+
€59,30
74+
€58,56
99+
€54,90
199+
€54,17
249+
€53,44
499+
€52,71
999+
€51,24
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL6UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 22mm |
| G 6H | M6 |
| B | 6mm |
| C1 max | 4.5mm |
| h1 | 30mm |
| a | 13deg |
| Dynamic load C | 3.6 kN |
| Static load Co | 8.15 kN |
| Weight | 0.023 kg |
| dk | 10mm |
| d4 | 11mm |
| l3 min | 11mm |
| l4 max | 43mm |
| l5 | 8mm |
| l7 min | 10mm |
| r1 min | 0.3mm |
| w h14 | 9mm |
