SKU: SIL8C-CDX

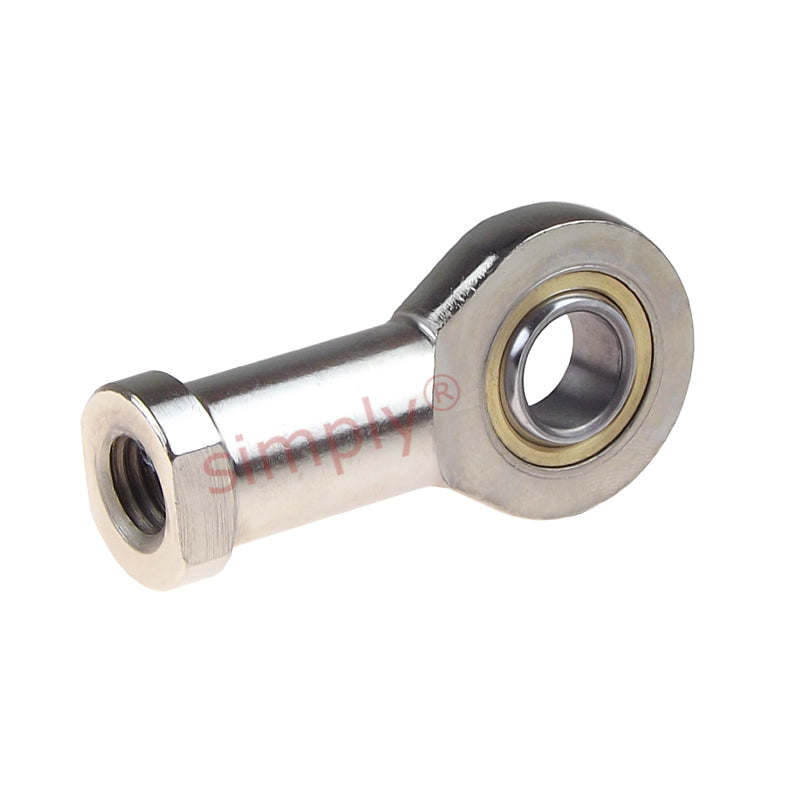

Codex SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
Codex SIL8C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M8 Thread
Regular price
€20,95
ex VAT
Regular price
Sale price
€20,95
ex VAT
Equivalent to: GIL8UK
In stock
Price Break
10+
€15,62
19+
€14,74
29+
€14,56
39+
€14,39
49+
€14,21
74+
€14,04
99+
€13,16
199+
€12,99
249+
€12,81
499+
€12,63
999+
€12,28
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL8UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 8mm |
| C1 max | 6.5mm |
| h1 | 36mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 5.8 kN |
| Static load | 12.9 kN |
| dk | 13mm |
| d4 | 13mm |
| l3 min | 15mm |
| l4 max | 50mm |
| l5 | 9mm |
| l7 min | 11mm |
| r1 min | 0.3mm |
| w h14 | 11mm |
| Weight | 0.036 kg |
