SKU: SK003

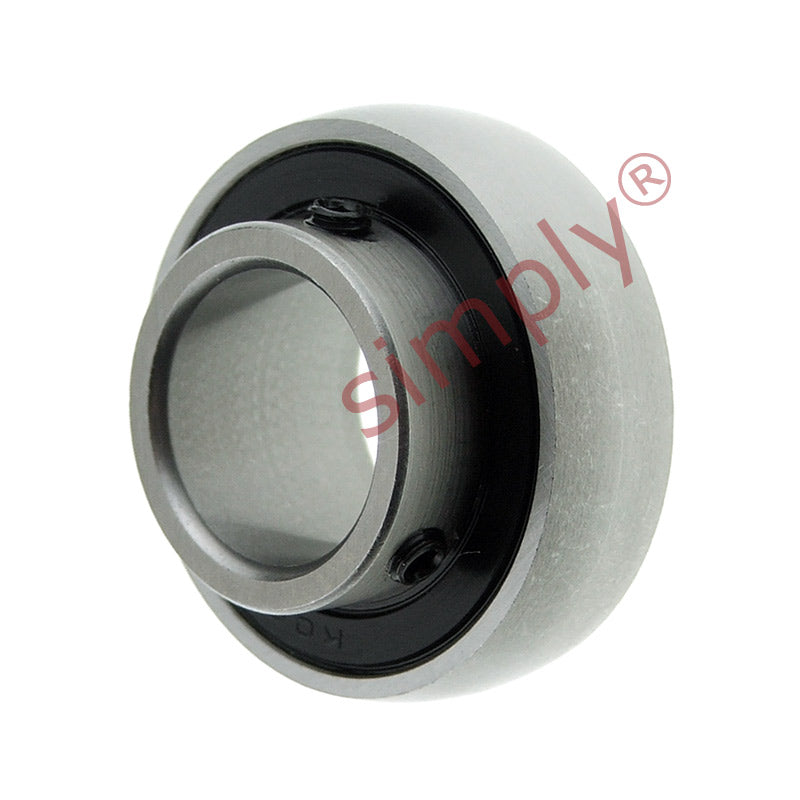

SK003 Stainless Steel Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia - Allow 2-3 Days
SK003 Stainless Steel Metric Grub Screw Type Bearing Insert with 17mm Bore 35mm Outside Dia - Allow 2-3 Days
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
In stock
Price Break
3+
€13,15
4+
€12,62
9+
€12,35
19+
€11,95
49+
€11,69
99+
€11,02
499+
€9,30
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Style:
- SK
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Bi | 17.5mm |
| Be | 10mm |
| r | 0.5mm |
| n | 5mm |
| G | 3.5mm |
| W | 23.1mm |
| Grub screw | M4x0.5 |
| Dynamic load | 610N ~ 62.203 kgf |
| Static load | 335N ~ 34.160 kgf |
| Weight | 0.06 kg |
