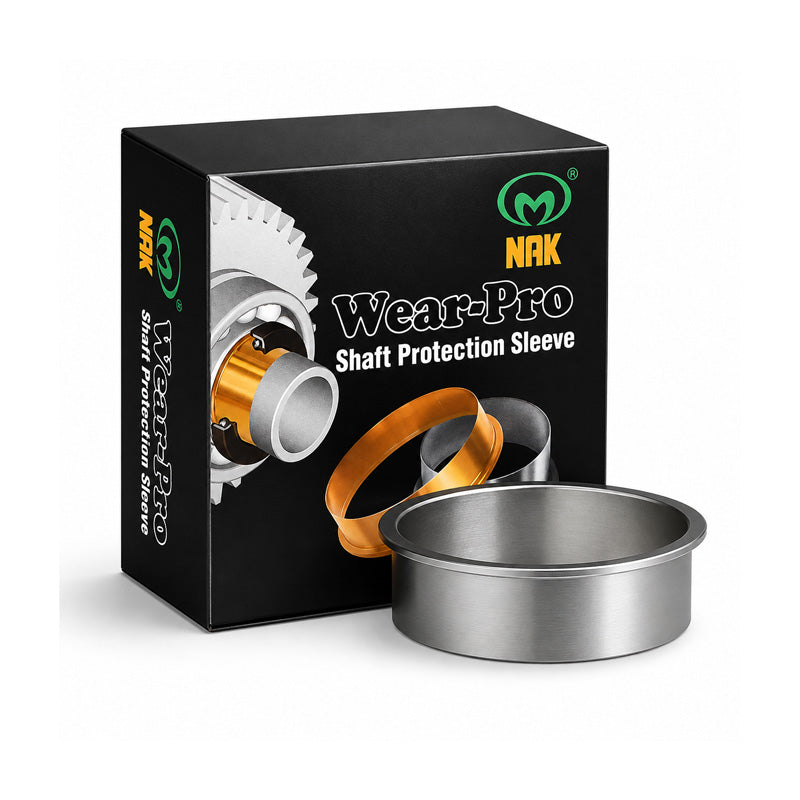

NAK SL004 Hardened Stainless Sleeve for Shafts 14.22-14.38mm - Allow 7-10 Days
NAK SL004 Hardened Stainless Sleeve for Shafts 14.22-14.38mm - Allow 7-10 Days
Regular price
€25,45
ex VAT
Regular price
Sale price
€25,45
ex VAT
Equivalent to: CR99056
In stock
Price Break
10+
€22,65
19+
€21,38
29+
€21,12
39+
€20,87
49+
€20,61
74+
€20,36
99+
€19,09
199+
€18,83
249+
€18,58
499+
€18,32
999+
€17,82
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99056
- Brand / Quality:
- NAK - High Quality
- Width:
- 9.9mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 14.3mm
- Flange Diameter:
- 19.1mm
Technical
Technical
| Shaft Diameter Range (A) | 14.22-14.38mm |
|---|---|
| Nominal Shaft Diameter (A) | 14.3mm |
| Flange Diameter (D) | 19.1mm |
| Width on Shaft (X) | 6.3mm |
| Overall Width (Y) | 9.9mm |
| Installation Depth (Z) | 46.5mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
