SKU: SL031_NAK

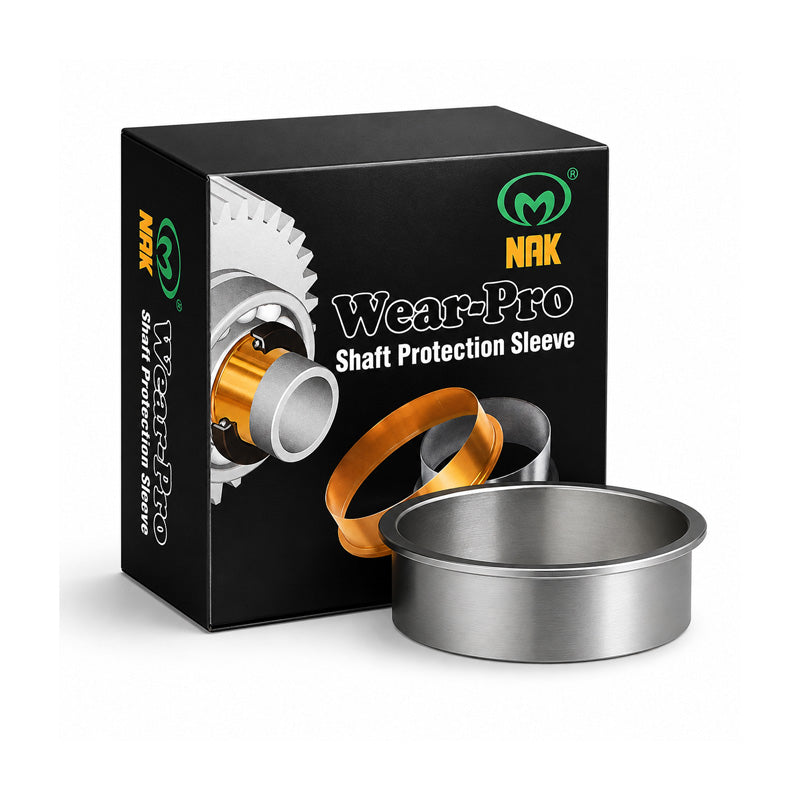

NAK SL031 Hardened Stainless Sleeve for Shafts 28.53-28.63mm - Allow 7-10 Days
NAK SL031 Hardened Stainless Sleeve for Shafts 28.53-28.63mm - Allow 7-10 Days
Regular price
€26,95
ex VAT
Regular price
Sale price
€26,95
ex VAT
Equivalent to: CR99116
In stock
Price Break
10+
€20,16
19+
€19,03
29+
€18,80
39+
€18,58
49+
€18,35
74+
€18,12
99+
€16,99
199+
€16,76
249+
€16,54
499+
€16,31
999+
€15,86
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99116
- Brand / Quality:
- NAK - High Quality
- Width:
- 12.7mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 28.58mm
- Flange Diameter:
- 38.1mm
Technical
Technical
| Shaft Diameter Range (A) | 28.53-28.63mm |
|---|---|
| Nominal Shaft Diameter (A) | 28.58mm |
| Flange Diameter (D) | 38.1mm |
| Width on Shaft (X) | 9.5mm |
| Overall Width (Y) | 12.7mm |
| Installation Depth (Z) | 17.5mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
