SKU: SL087_IMP_NAK

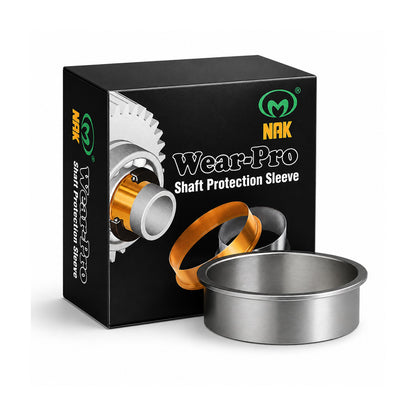

NAK SL087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
NAK SL087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
Regular price
€26,90
ex VAT
Regular price
Sale price
€26,90
ex VAT
Equivalent to: CR99193
In stock
Price Break
10+
€23,94
19+
€22,60
29+
€22,33
39+
€22,06
49+
€21,79
74+
€21,52
99+
€20,18
199+
€19,91
249+
€19,64
499+
€19,37
999+
€18,83
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99193
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.5 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.938 inch
- Flange Diameter:
- 2.22 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.934-1.940 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.938 inch |
| Flange Diameter (D) | 2.22 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.5 inch |
| Installation Depth (Z) | 1.047 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
