SKU: SL099_NAK

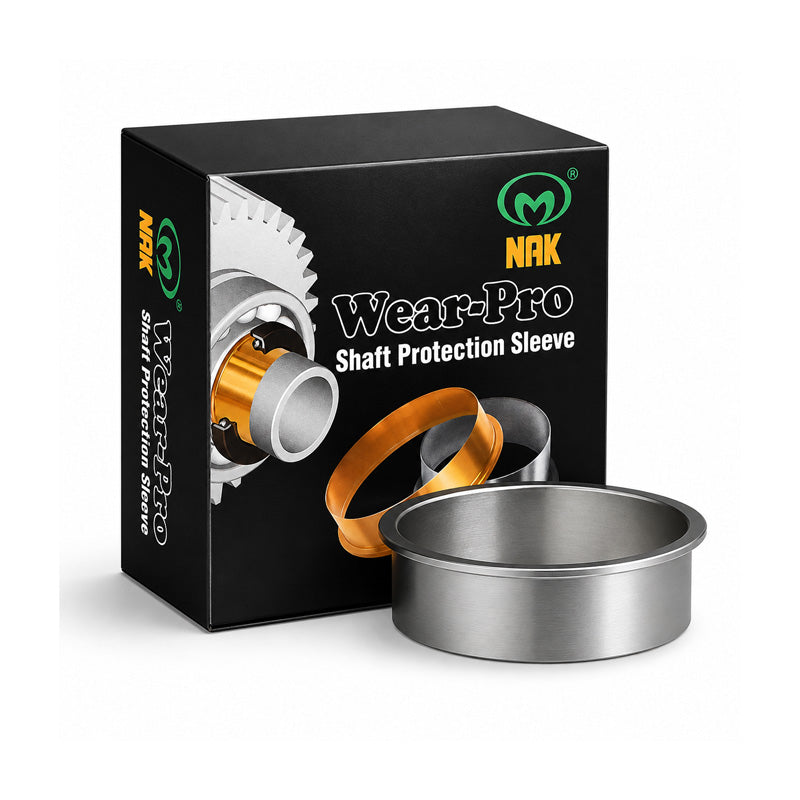

NAK SL099 Hardened Stainless Sleeve for Shafts 56.57-56.72mm
NAK SL099 Hardened Stainless Sleeve for Shafts 56.57-56.72mm
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
Equivalent to: CR99229
In stock
Price Break
10+
€10,11
19+
€9,54
29+
€9,43
39+
€9,32
49+
€9,20
74+
€9,09
99+
€8,52
199+
€8,41
249+
€8,29
499+
€8,18
999+
€7,95
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99229
- Brand / Quality:
- NAK - High Quality
- Width:
- 15.9mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 56.64mm
- Flange Diameter:
- 64.3mm
Technical
Technical
| Shaft Diameter Range (A) | 56.57-56.72mm |
|---|---|
| Nominal Shaft Diameter (A) | 56.64mm |
| Flange Diameter (D) | 64.3mm |
| Width on Shaft (X) | 12.7mm |
| Overall Width (Y) | 15.9mm |
| Installation Depth (Z) | 33.4mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
