SKU: SL217_IMP_NAK

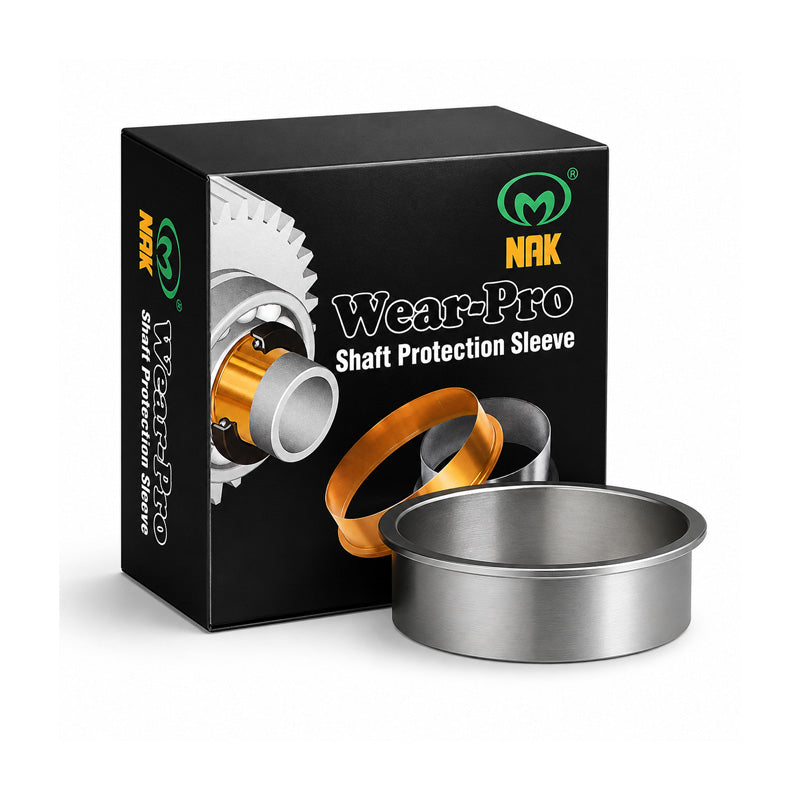

NAK SL217 Hardened Stainless Sleeve for Shafts 4.685-4.693 inch - Allow 7-10 Days
NAK SL217 Hardened Stainless Sleeve for Shafts 4.685-4.693 inch - Allow 7-10 Days
Regular price
€47,95
ex VAT
Regular price
Sale price
€47,95
ex VAT
Equivalent to: CR99468
In stock
Price Break
10+
€36,02
19+
€34,00
29+
€33,59
39+
€33,19
49+
€32,78
74+
€32,38
99+
€30,36
199+
€29,95
249+
€29,55
499+
€29,14
999+
€28,33
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99468
- Brand / Quality:
- NAK - High Quality
- Width:
- 1 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 4.688 inch
- Flange Diameter:
- 5.063 inch
Technical
Technical
| Shaft Diameter Range (A) | 4.685-4.693 inch |
|---|---|
| Nominal Shaft Diameter (A) | 4.688 inch |
| Flange Diameter (D) | 5.063 inch |
| Width on Shaft (X) | 0.811 inch |
| Overall Width (Y) | 1 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
