SKU: SLC20A-RHP

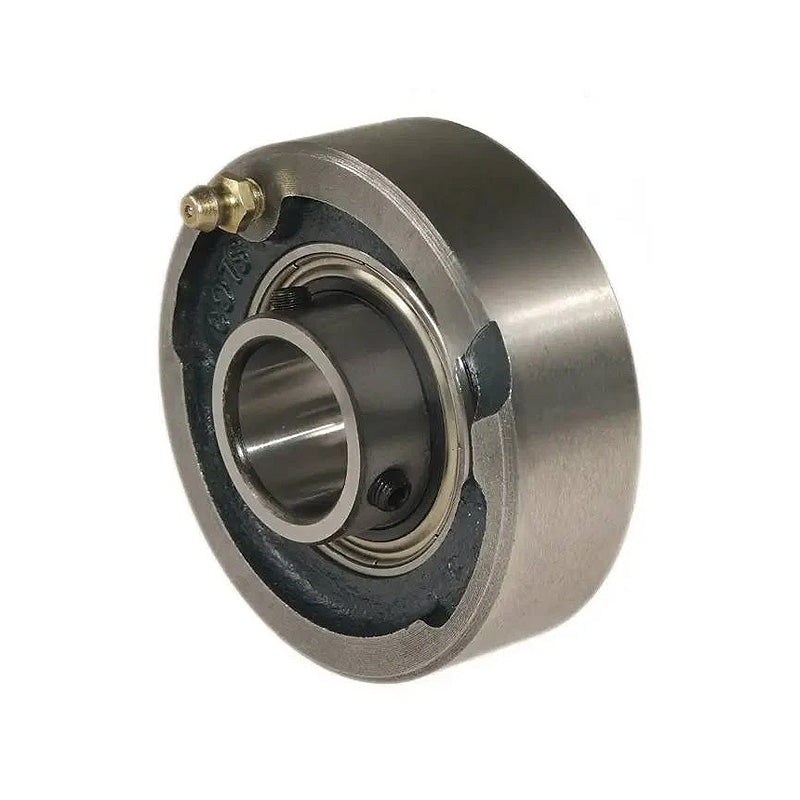

RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
10+
€34,51
20+
€32,57
30+
€32,18
40+
€31,79
50+
€31,41
75+
€31,02
100+
€29,08
200+
€28,69
250+
€28,30
500+
€27,92
1000+
€27,14
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 74.64mm
- Style:
- SLC
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 74.637mm |
| A | 22.22mm |
| A1 | 29.39mm |
| A2 | 34.54mm |
| A3 | 37.67mm |
| B | 30.96mm |
| B1 | 25.77mm |
| B2 | 30.92mm |
| B3 | 43.62mm |
| s | 12.75mm |
| s1 | 7.56mm |
| s2 | 17.12mm |
| d1 | 28.5mm |
| d2 | 33.3mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
