SKU: SLC40DEC-RHP
RHP SLC40DEC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
RHP SLC40DEC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
Regular price
€91,95
ex VAT
Regular price
Sale price
€91,95
ex VAT
In stock
Price Break
10+
€69,98
20+
€66,05
30+
€65,27
40+
€64,48
50+
€63,69
75+
€62,91
100+
€58,98
200+
€58,19
250+
€57,40
500+
€56,62
1000+
€55,04
Share this product
Description
Description
|

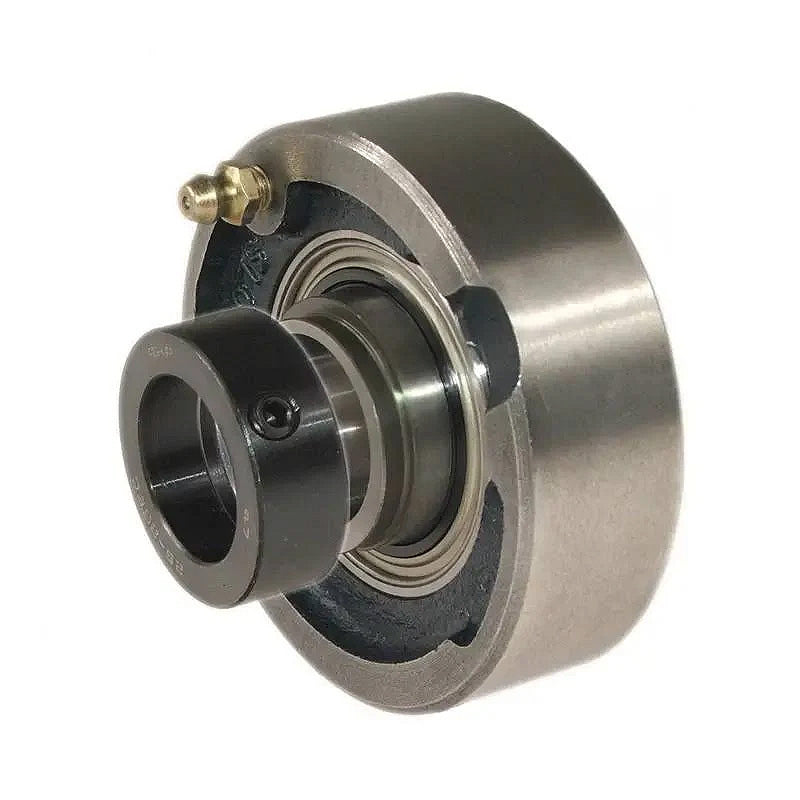

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 106.39mm
- Style:
- SLC
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 106.387mm |
| A | 37.31mm |
| A3 | 53.57mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
