SKU: SLC45EC-RHP

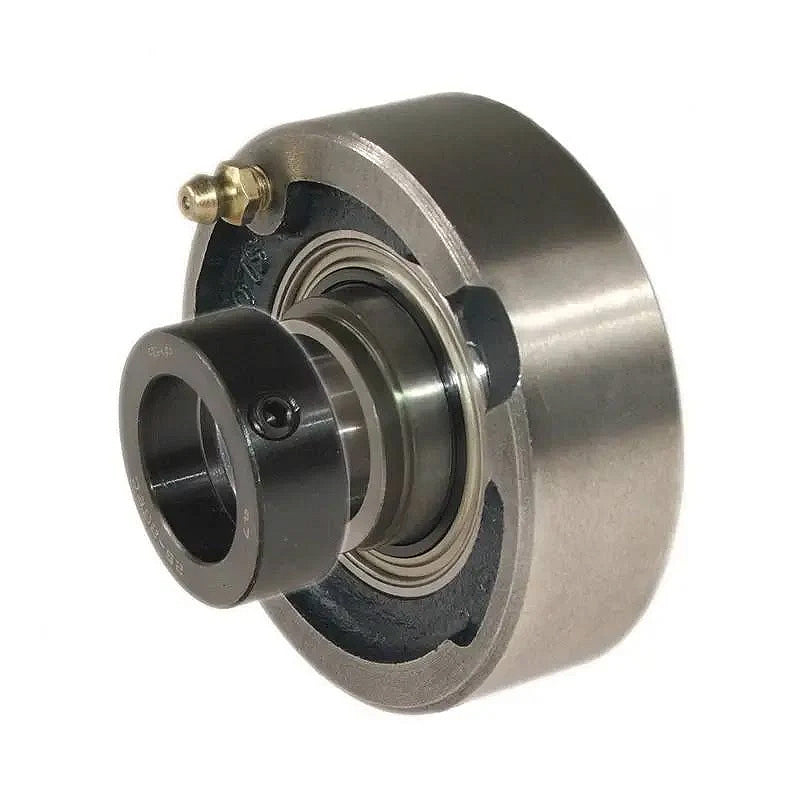

RHP SLC45EC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
RHP SLC45EC Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
Regular price
€94,37
ex VAT
Regular price
Sale price
€94,37
ex VAT
In stock
Price Break
10+
€83,99
19+
€79,27
29+
€78,33
39+
€77,38
49+
€76,44
74+
€75,50
99+
€70,78
199+
€69,83
249+
€68,89
499+
€67,95
999+
€66,06
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 111.15mm
- Style:
- SLC

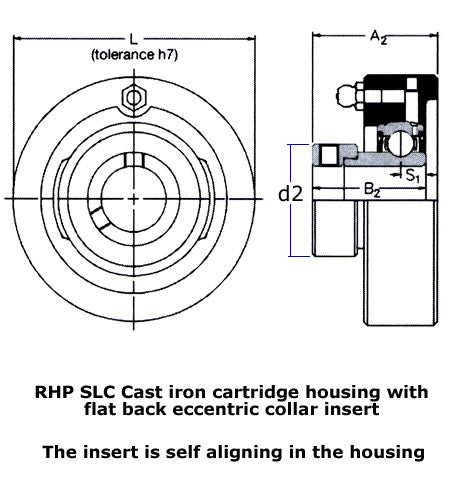

Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.15mm |
| A | 36.51mm |
| A2 | 50.88mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
