SKU: SLC50EC-RHP

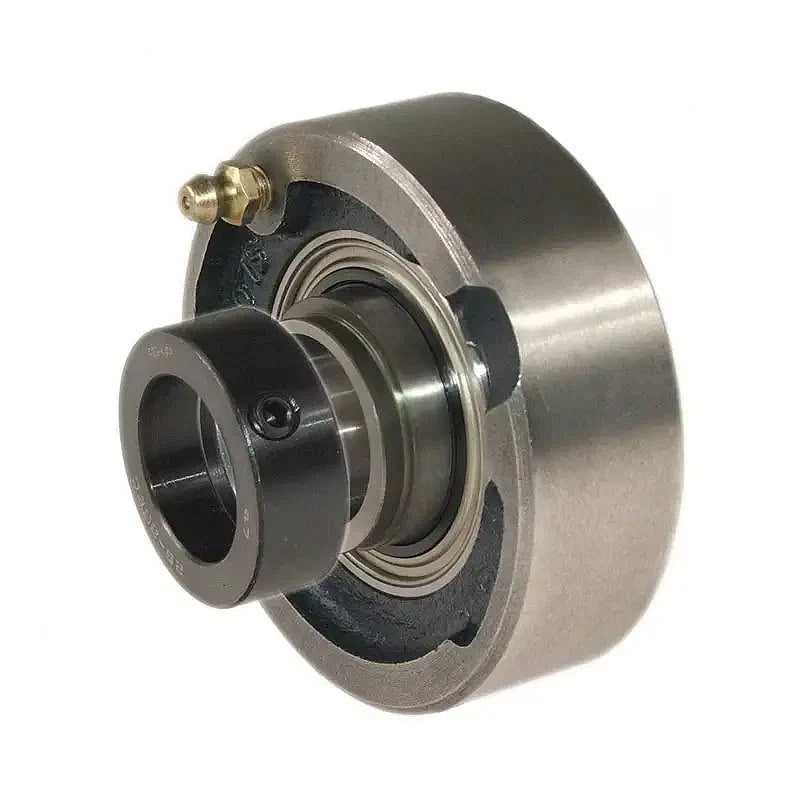

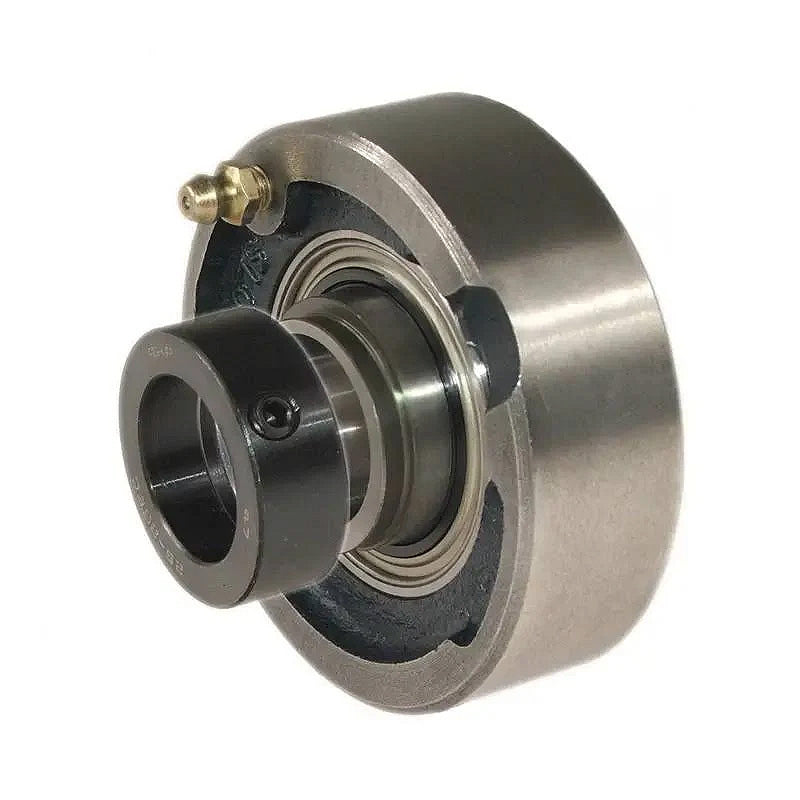

RHP SLC50EC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP SLC50EC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Regular price
€112,47
ex VAT
Regular price
Sale price
€112,47
ex VAT
In stock
Price Break
10+
€100,10
19+
€94,47
29+
€93,35
39+
€92,23
49+
€91,10
74+
€89,98
99+
€84,35
199+
€83,23
249+
€82,10
499+
€80,98
999+
€78,73
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A2 | 51.28mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
