SKU: SM-UCFL207D1-NTN

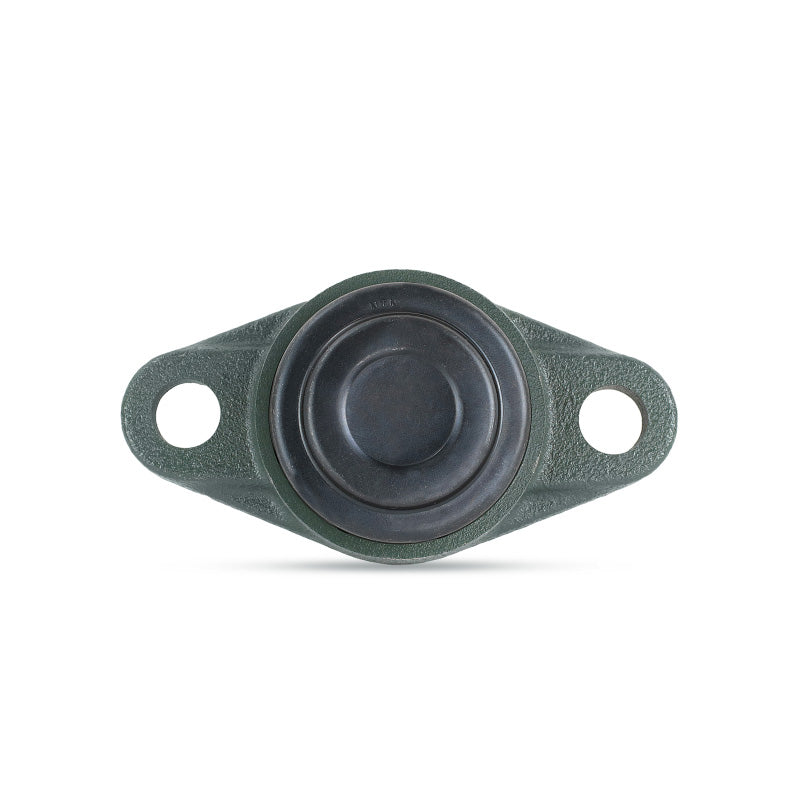

NTN SM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFL207D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€43,87
4+
€42,09
9+
€41,21
19+
€39,88
49+
€38,99
99+
€36,78
499+
€31,02
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| H | 161mm |
| J | 130mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 16mm |
| L | 90mm |
| B | 42.9mm |
| S | 17.5mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 55mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.2 kg |
