SKU: SM-UCFL208D1-NTN

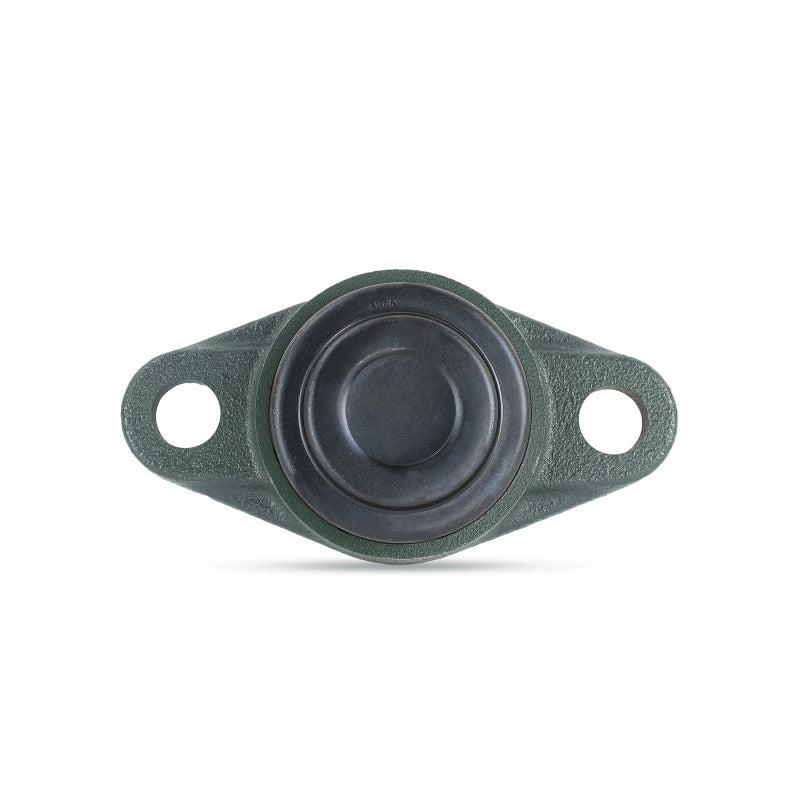

NTN SM-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€64,95
ex VAT
Regular price
Sale price
€64,95
ex VAT
In stock
Price Break
3+
€54,83
4+
€52,61
9+
€51,50
19+
€49,84
49+
€48,73
99+
€45,97
499+
€38,77
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 175mm |
| J | 144mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| L | 100mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 62mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 1.5 kg |
