SKU: SNLN3056-SKF

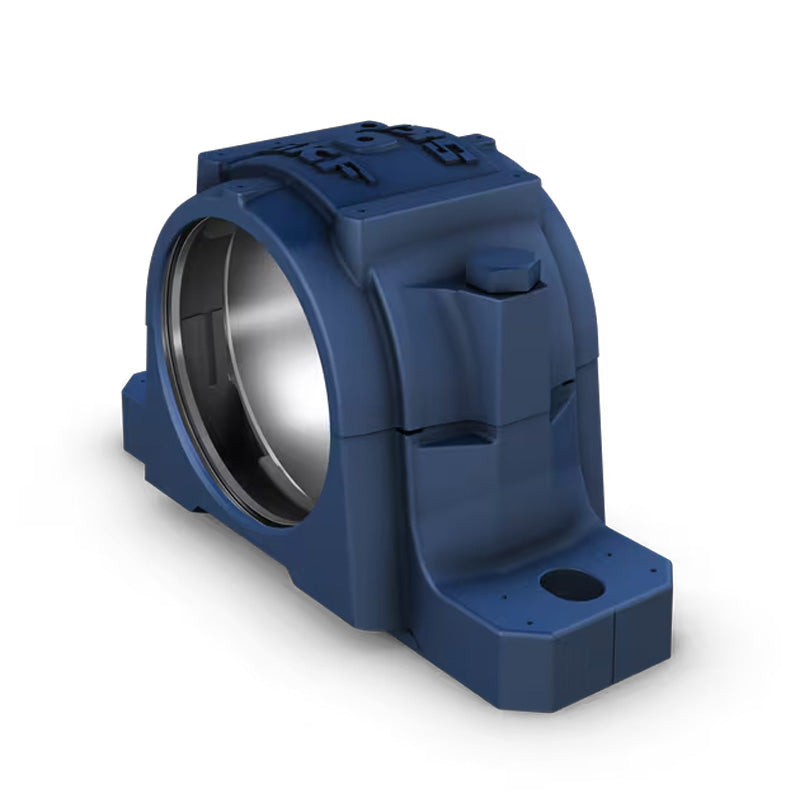

SKF SNLN3056 Cast Iron Split Pillow Block Housing
SKF SNLN3056 Cast Iron Split Pillow Block Housing
Regular price
€3.795,95
ex VAT
Regular price
Sale price
€3.795,95
ex VAT
In stock
Price Break
4+
€2.890,43
9+
€2.728,05
19+
€2.695,57
29+
€2.663,09
39+
€2.630,62
49+
€2.598,14
59+
€2.435,76
69+
€2.403,28
79+
€2.370,80
89+
€2.338,33
99+
€2.273,37
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 720mm
Technical
Technical
| da | 260mm |
|---|---|
| Ca | 126mm |
| Da | 420mm |
| A | 300mm |
| A1 | 230mm |
| H | 496mm |
| H1 | 250mm |
| H2 | 80mm |
| J | 720mm |
| L | 860mm |
| N | 70mm |
| N1 | 48mm |
| J6 | 800mm |
| J7 | 85mm |
| N4 max | 16mm |
| ba | 106mm |
| bc | 123mm |
