SKU: SNP25DEC-RHP

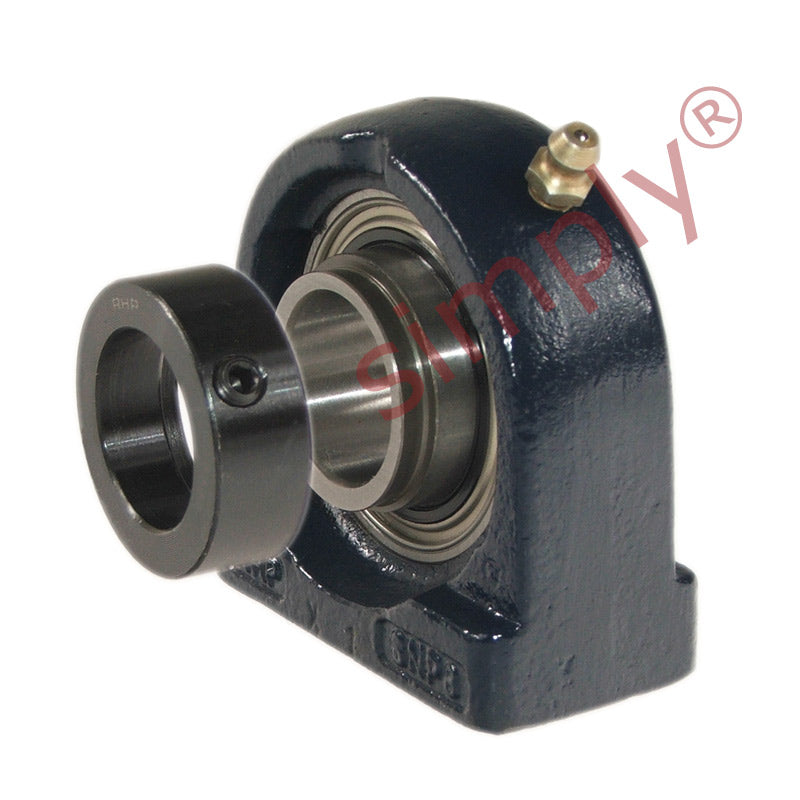

RHP SNP25DEC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Full Width Collar Insert
RHP SNP25DEC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Full Width Collar Insert
Regular price
€60,28
ex VAT
Regular price
Sale price
€60,28
ex VAT
In stock
Price Break
10+
€53,65
19+
€50,64
29+
€50,03
39+
€49,43
49+
€48,83
74+
€48,22
99+
€45,21
199+
€44,61
249+
€44,00
499+
€43,40
999+
€42,20
Couldn't load pickup availability
Description
Description
|
RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 80mm |
| H | 36.5mm |
| H1 | 13.5mm |
| H2 | 71.5mm |
| J | 50.8mm |
| Threads | M10x1.50 |
| A | 36mm |
| A1 | 25mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
