SKU: SNP60-RHP

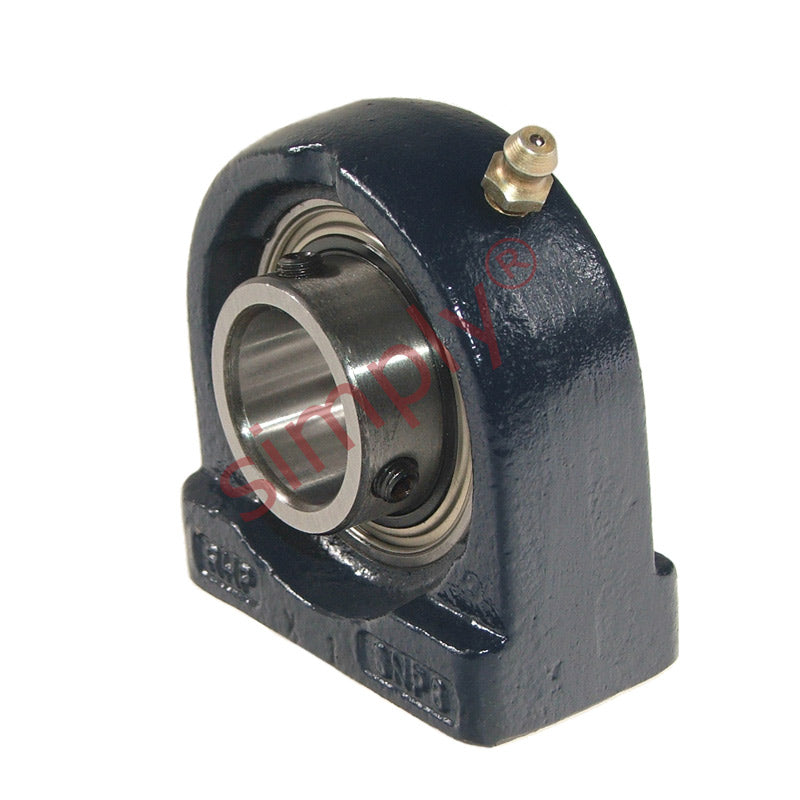

RHP SNP60 Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Grub Screw Full Width Insert
RHP SNP60 Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Grub Screw Full Width Insert
Regular price
€179,49
ex VAT
Regular price
Sale price
€179,49
ex VAT
In stock
Price Break
10+
€159,75
19+
€150,77
29+
€148,98
39+
€147,18
49+
€145,39
74+
€143,59
99+
€134,62
199+
€132,82
249+
€131,03
499+
€129,23
999+
€125,64
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- SNP
- Bolt Hole Centres:
- 118mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 154mm |
| H | 69.9mm |
| H1 | 26.5mm |
| H2 | 141.5mm |
| J | 118mm |
| Threads | M16x2.00 |
| A | 60mm |
| A1 | 41.5mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
