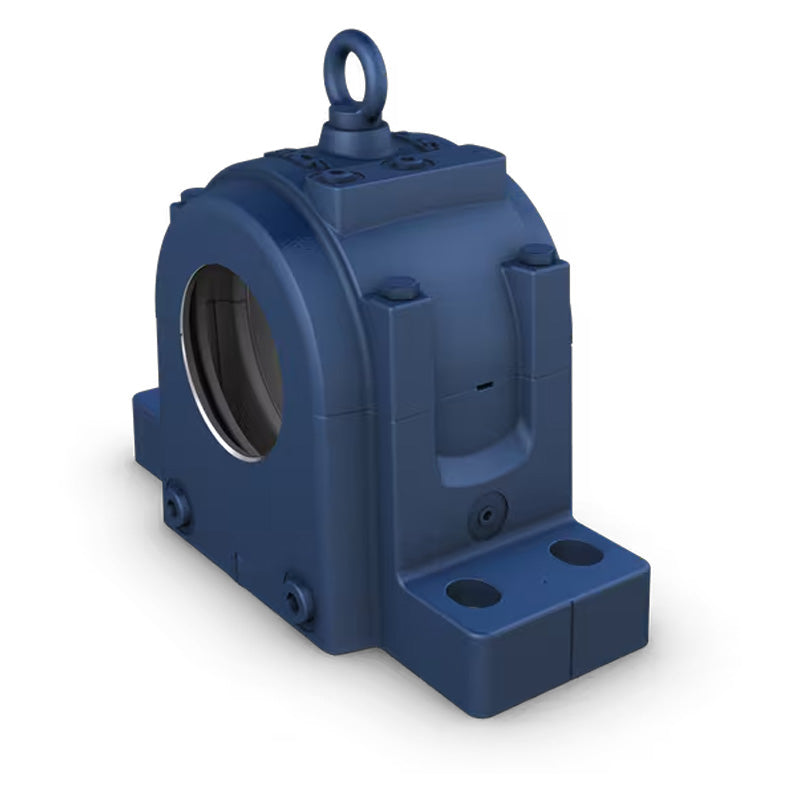

SKF SONL224-524 Cast Iron Split Pillow Block Housing
SKF SONL224-524 Cast Iron Split Pillow Block Housing
Regular price
€3.171,95
ex VAT
Regular price
Sale price
€3.171,95
ex VAT
In stock
Price Break
4+
€2.415,68
9+
€2.279,96
19+
€2.252,82
29+
€2.225,68
39+
€2.198,54
49+
€2.171,39
59+
€2.035,68
69+
€2.008,54
79+
€1.981,40
89+
€1.954,26
99+
€1.899,97
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 347mm
Technical
Technical
| da | 106.362mm |
|---|---|
| Ca | 82mm |
| Da | 215mm |
| A | 245mm |
| A1 | 170mm |
| A2 | 179mm |
| AA | 261mm |
| AB | 276mm |
| d1 | 135mm |
| B1 | 109mm |
| H | 315mm |
| H0 | 386mm |
| H1 | 170mm |
| H2 | 55mm |
| J | 347mm |
| J1 | 90mm |
| L | 420mm |
| N | 32mm |
| N1 | 26mm |
| S | 138mm |
| PG | G 3/8 |
| P1 | 55mm |
| P2 | 65mm |
| RG | G 3/4 |
| R1 | 178mm |
| R2 | 25mm |
| O1 | 100mm |
| O2 | 179mm |
| J6 | 370mm |
| N4 max | 8mm |
| ba | 56mm |
| bb | 194mm |
| s2 | 47mm |
| Weight | 72 kg |
