SKU: SP60-M3200

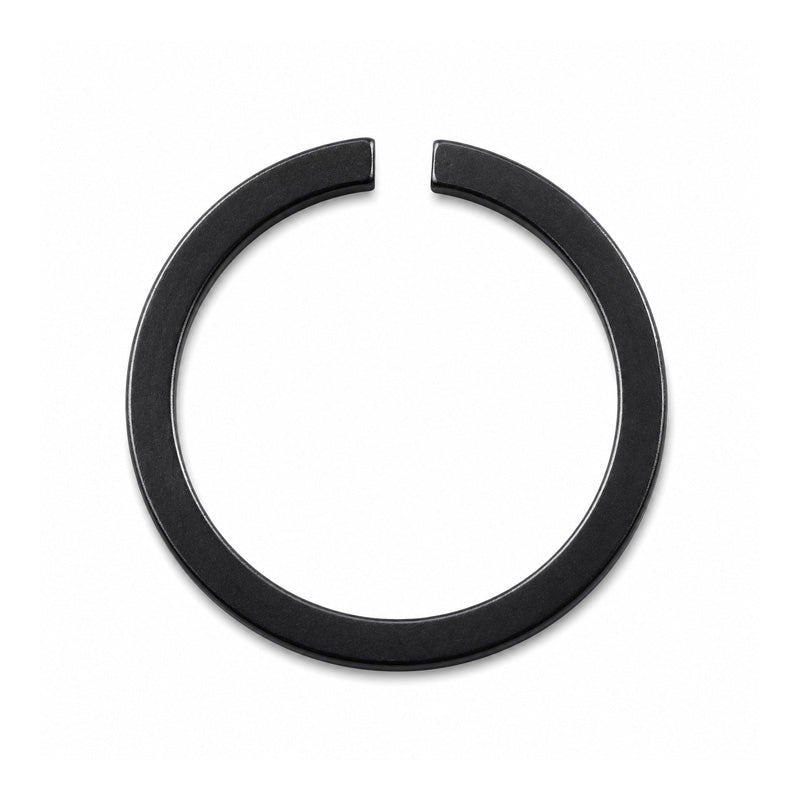

SP60 Snap Ring to Suit 60mm Outside Diameter of Bearing
SP60 Snap Ring to Suit 60mm Outside Diameter of Bearing
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
Equivalent to: DIN5417 DIN 5417 CBS60 CBS-60 3200-60 SP60 SP-60 M3200-60
Low stock
Price Break
5+
€4,74
10+
€4,55
20+
€4,45
50+
€4,31
100+
€4,22
500+
€3,98
1000+
€3,35
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52 |
Equivalent: DIN5417 DIN 5417 CBS60 CBS-60 3200-60 SP60 SP-60 M3200-60
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 56.7mmmm
- Shaft Size:
- 60mm
Technical
Technical
| d1 | 60mm |
|---|---|
| s | 1.4mm (Tolerance -0.1) |
| b | 2.1mm (Tolerance -0.15) |
| d3 | 56.7mmmm (Tolerance 0.8) |
| e approx | 4mm |
| r min | 0.6mm |
| C2 | 61.2mm |
| FN | 36.85kN |
| FR | 24.55kN |
| g | 5 |
| Max Rpm x1000 | 5 |
| Weight | 0.0086g |
