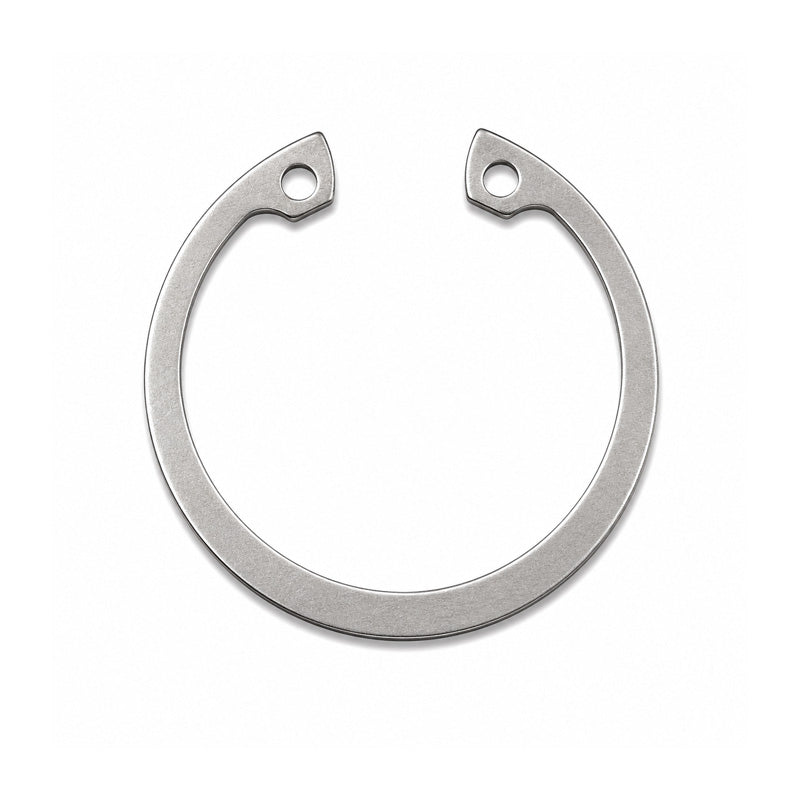

• Stainless Internal Circlip for 24mm Bore Diameter Un-Sprung Dia 25.9mm
1 1

SKU: SS.D1300-024

Stainless Internal Circlip for 24mm Bore Diameter Un-Sprung Dia 25.9mm

Stainless Internal Circlip for 24mm Bore Diameter Un-Sprung Dia 25.9mm
€1,95 ex VAT
€1,95 ex VAT
Sale Sold out

Equivalent to: SSD1300-024

In stock

Price Break
10+ €0,47
20+ €0,36
50+ €0,26
100+ €0,21
500+ €0,17
1000+ €0,13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Stainless Steel Internal Circlips: The most common form of axially fitted circlips for bores with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Material: Stainless Spring Steel
Benefits: Cost effective replacement, durable, removable, corrosion resistant

Equivalent: SSD1300-024
Brand / Quality:
Simply Circlips - Economy Quality
Bore:
24mm
Outside Diameter:
25.9mm
Material:
Stainless Steel
Thickness:
1.2mm
Groove Diameter:
25.2mm
Technical
--- Clip Dimensions
Bore Size 24mm
Thickness s 1.2mm
Thickness tolerance -0.06mm
Unstressed diameter d3 25.9mm
Unstressed diameter tolerance +0.42-0.21mm
Lug a 4.3mm
Beam b 2.6mm
d5 2mm
Weight 1.42 g
--- Groove Requirements
Groove diameter 25.2mm
Groove tolerance 0.21mm
Minimum groove width 1.3mm
Groove depth 0.6mm
