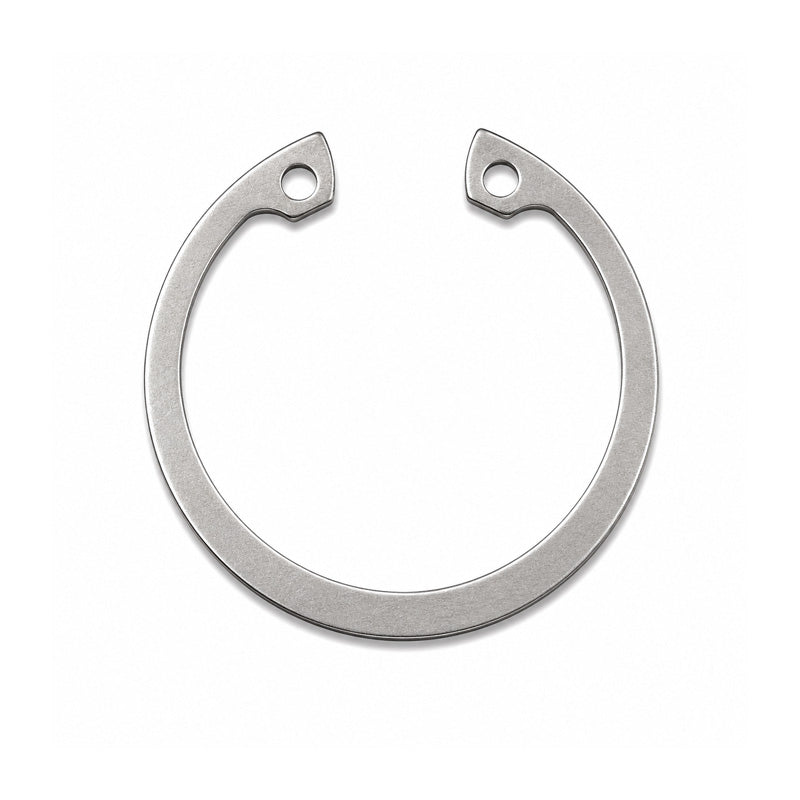

• Stainless Internal Circlip for 68mm Bore Diameter Un-Sprung Dia 72.5mm
1 1

SKU: SS.D1300-068

Stainless Internal Circlip for 68mm Bore Diameter Un-Sprung Dia 72.5mm

Stainless Internal Circlip for 68mm Bore Diameter Un-Sprung Dia 72.5mm
€5,95 ex VAT
€5,95 ex VAT
Sale Sold out

Equivalent to: SSD1300-068

In stock

Price Break
5+ €3,18
10+ €2,72
20+ €2,50
50+ €2,27
100+ €1,82
500+ €1,59
1000+ €1,36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Stainless Steel Internal Circlips: The most common form of axially fitted circlips for bores with grooves.
The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Material: Stainless Spring Steel
Benefits: Cost effective replacement, durable, removable, corrosion resistant

Equivalent: SSD1300-068
Brand / Quality:
Simply Circlips - Economy Quality
Bore:
68mm
Outside Diameter:
72.5mm
Material:
Stainless Steel
Thickness:
2.5mm
Groove Diameter:
71mm
Technical
--- Clip Dimensions
Bore Size 68mm
Thickness s 2.5mm
Thickness tolerance -0.07mm
Unstressed diameter d3 72.5mm
Unstressed diameter tolerance +1.10-0.46mm
Lug a 7.8mm
Beam b 6.1mm
d5 3mm
Weight 16 g
--- Groove Requirements
Groove diameter 71mm
Groove tolerance 0.3mm
Minimum groove width 2.65mm
Groove depth 1.5mm
