SKU: SS.D1500-0150

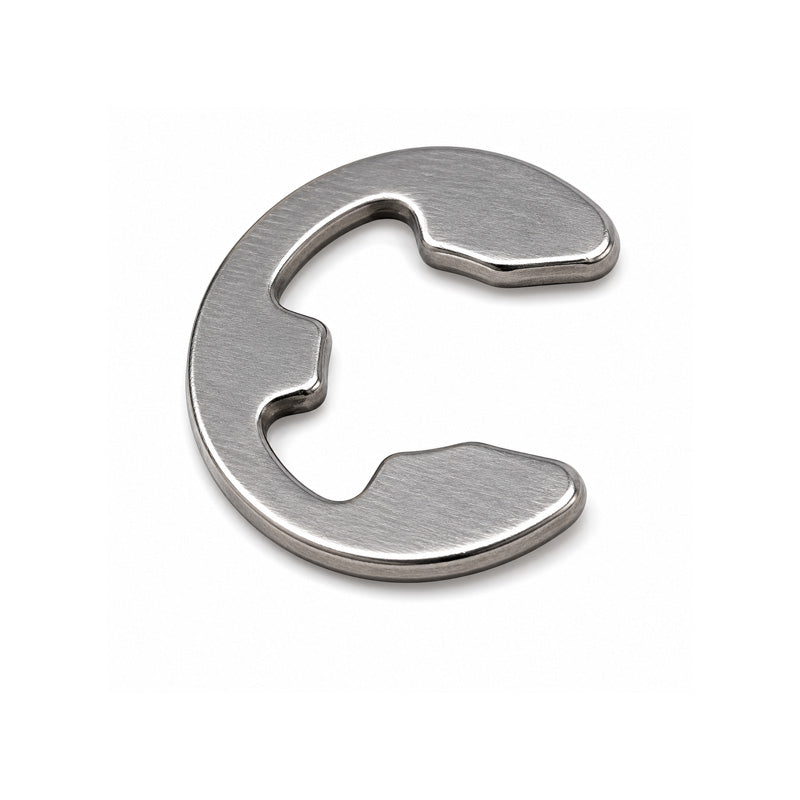

Stainless Steel E-Clip for 15mm Groove Diameter
Stainless Steel E-Clip for 15mm Groove Diameter
Regular price
€1,95
ex VAT
Regular price
Sale price
€1,95
ex VAT
Equivalent to: SS.D1500-0150
In stock
Price Break
10+
€0,47
20+
€0,36
50+
€0,26
100+
€0,21
500+
€0,17
1000+
€0,13
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
Equivalent: SS.D1500-0150
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 20mm
- Thickness:
- 1.5mm
- Groove Diameter:
- 15mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 20mm |
| Shaft Range | 16mm to 24mm |
| Thickness (s) | 1.5mm |
| Thickness Tolerance | ±0.03mm |
| Max Outisde Diameter (d4) | 28.7mm |
| Shoulder Length (n) | 3mm |
| a | 12.61mm |
| a Tolerance | ±0.07mm |
| Weight | 3.37kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 11000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 15mm |
| Groove Diameter Tolerance | +0mm / -0.11mm |
| Groove Width (m) | 1.55mm |
| Groove Depth (g) | 2.2mm |
