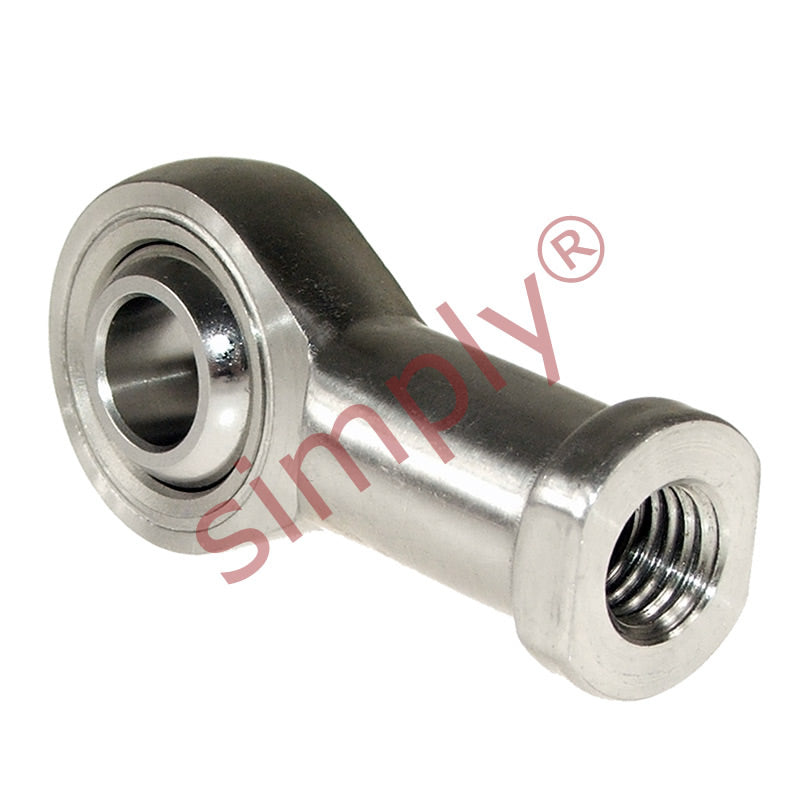

Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread

Name: Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Brand: Gen
SKU: SS.PHS10.EU
Price: 26.95 EUR
Availability: InStock

€26,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €19,92

19+ €18,80

29+ €18,58

39+ €18,35

49+ €18,13

74+ €17,91

99+ €16,79

199+ €16,56

249+ €16,34

499+ €16,12

999+ €15,67

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M10x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 10mm
Material:: PTFE Lined

Technical

d	10mm
B	14mm
r1	0.6mm
C1	10.5mm
d1 max	12.9mm
d2	26mm
d3	M10x1.5
h1	43mm
L3	21mm
L4	56mm
L5	6.5mm
d4	15mm
d5	19mm
S	17mm
Ball diameter	3/4 inch
Dynamic load Cr	10mm
Static load Cor	13.6mm
Max angle α	13
Weight	0.072 kg
