SKU: SS.PHS12.EU

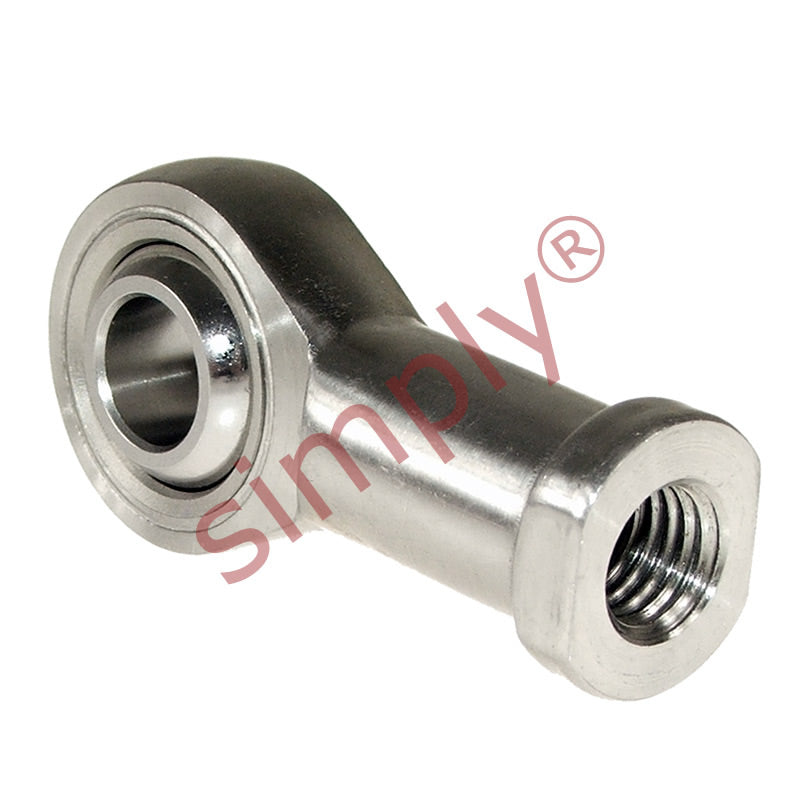

Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread

Name: Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Brand: Gen
SKU: SS.PHS12.EU
Price: 19.95 EUR
Availability: InStock

€19,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €15,09

19+ €14,24

29+ €14,07

39+ €13,90

49+ €13,73

74+ €13,56

99+ €12,71

199+ €12,54

249+ €12,37

499+ €12,20

999+ €11,87

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M12x1.75
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

d	12mm
B	16mm
r1	0.6mm
C1	12mm
d1 max	15.4mm
d2	30mm
d3	M12x1.75
h1	50mm
L3	24mm
L4	65mm
L5	6.5mm
d4	17.5mm
d5	22mm
S	19mm
Ball diameter	7/8 inch
Dynamic load Cr	13.3mm
Static load Cor	17.3mm
Max angle α	13
Weight	0.107 kg
