SKU: SS.POS14L.EU

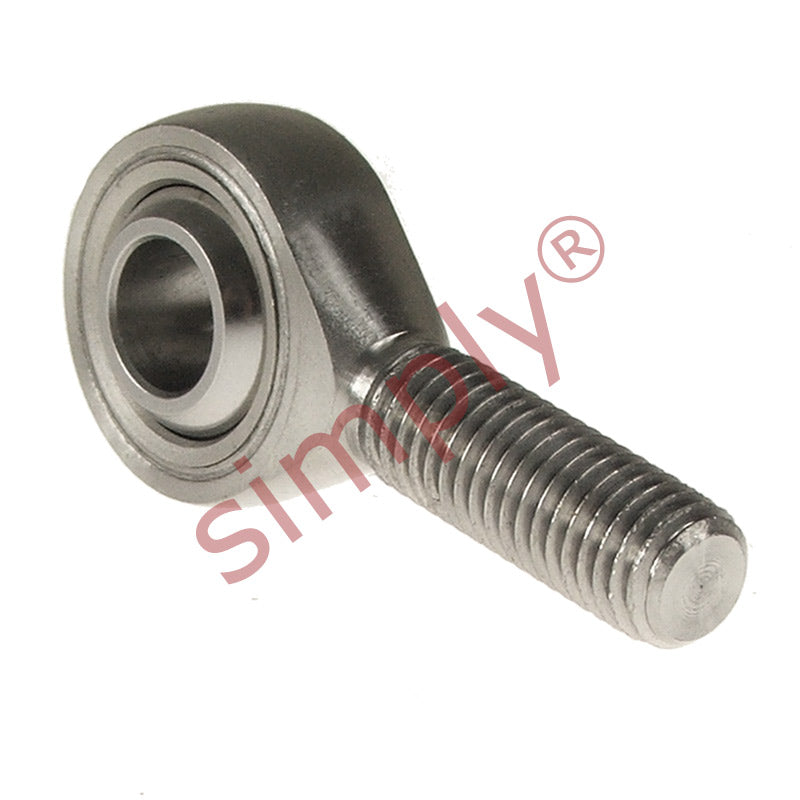

Budget SSPOS14L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
Budget SSPOS14L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
Regular price
€43,95
ex VAT
Regular price
Sale price
€43,95
ex VAT
In stock
Price Break
10+
€33,17
19+
€31,31
29+
€30,93
39+
€30,56
49+
€30,19
74+
€29,82
99+
€27,95
199+
€27,58
249+
€27,21
499+
€26,84
999+
€26,09
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M14x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 14mm
- Material:
- PTFE Lined
Technical
Technical
| d | 14mm |
|---|---|
| B | 19mm |
| r1 | 0.6mm |
| C1 | 13.5mm |
| d1 max | 16.8mm |
| d2 | 34mm |
| d3 | M14x2 |
| h | 60mm |
| l1 | 36mm |
| l2 | 77mm |
| Ball diameter | 1 inch |
| Dynamic load Cr | 17.1 kN |
| Static load Cor | 21.3 kN |
| Max angle α | 16 |
| Weight | 0.126 kg |
