SKU: SS.POS16L.EU

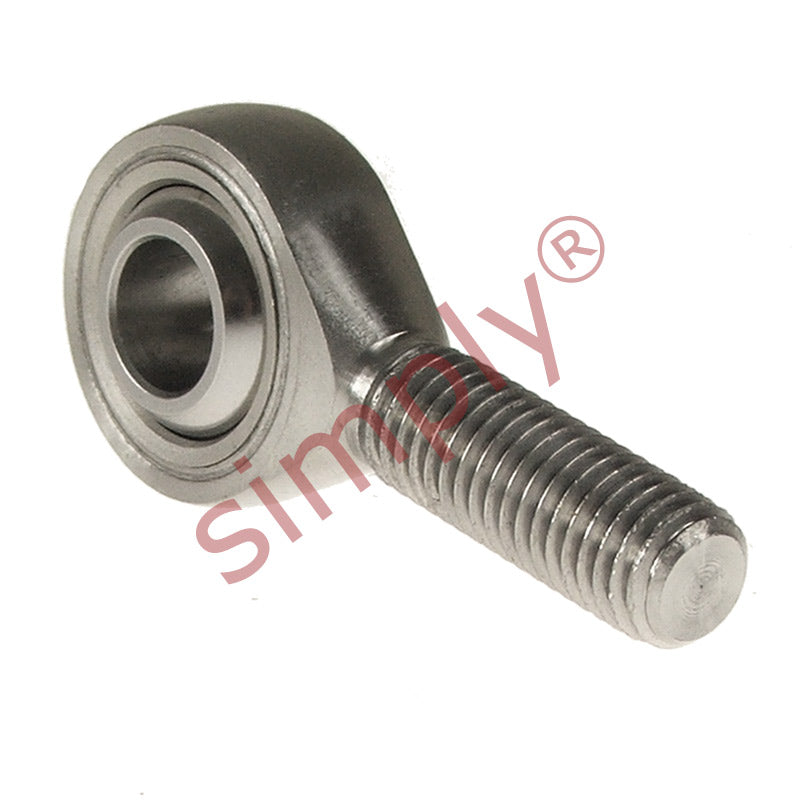

Budget SSPOS16L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Budget SSPOS16L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
10+
€22,93
19+
€21,64
29+
€21,38
39+
€21,12
49+
€20,87
74+
€20,61
99+
€19,32
199+
€19,06
249+
€18,80
499+
€18,55
999+
€18,03
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
