SKU: SS.POS30.EU

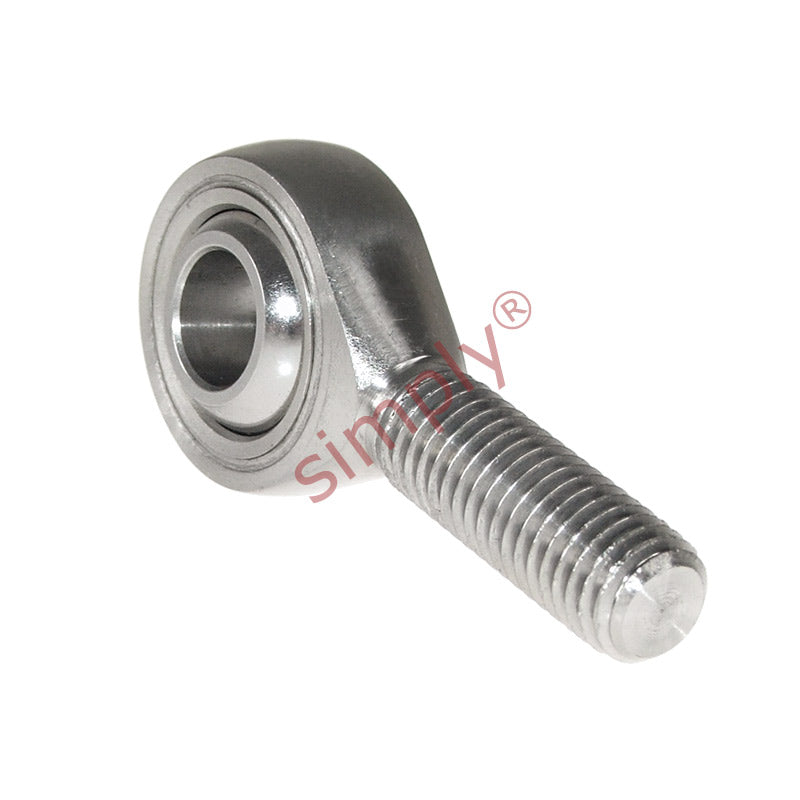

Budget SSPOS30 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 30mm Bore M30x2 Thread
Budget SSPOS30 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 30mm Bore M30x2 Thread
Regular price
€128,95
ex VAT
Regular price
Sale price
€128,95
ex VAT
In stock
Price Break
10+
€97,72
19+
€92,23
29+
€91,13
39+
€90,04
49+
€88,94
74+
€87,84
99+
€82,35
199+
€81,25
249+
€80,15
499+
€79,06
999+
€76,86
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M30x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 30mm
- Material:
- PTFE Lined
Technical
Technical
| d | 30mm |
|---|---|
| B | 37mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 34.8mm |
| d2 | 70mm |
| d3 | M30x2 |
| h | 110mm |
| l1 | 66mm |
| l2 | 145mm |
| Ball diameter | 2 inch |
| Dynamic load Cr | 63.5 kN |
| Static load Cor | 94 kN |
| Max angle α | 17 |
| Weight | 1.07 kg |
