SKU: SS.SB.204

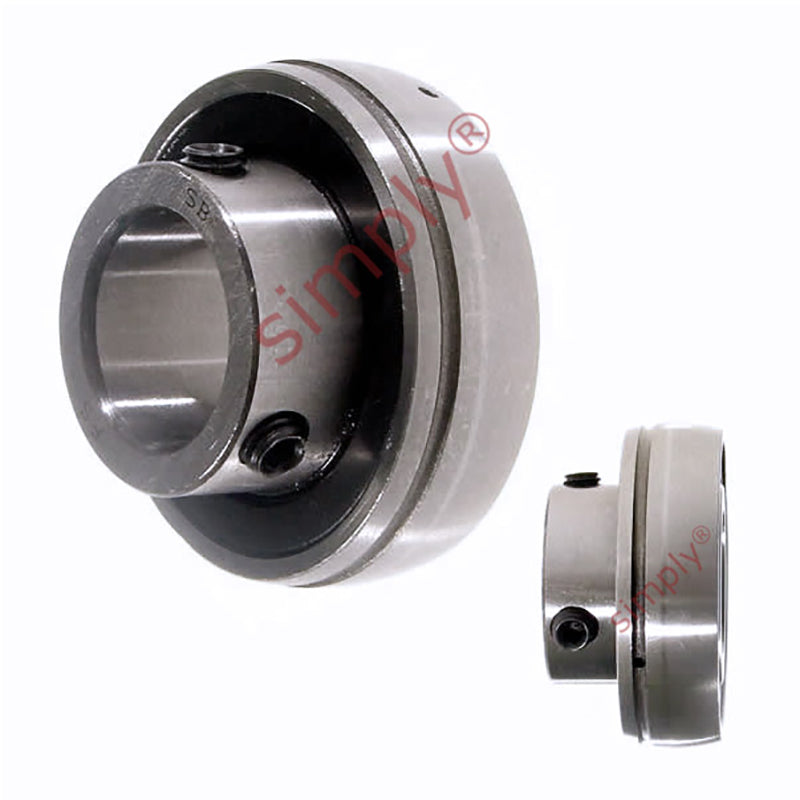

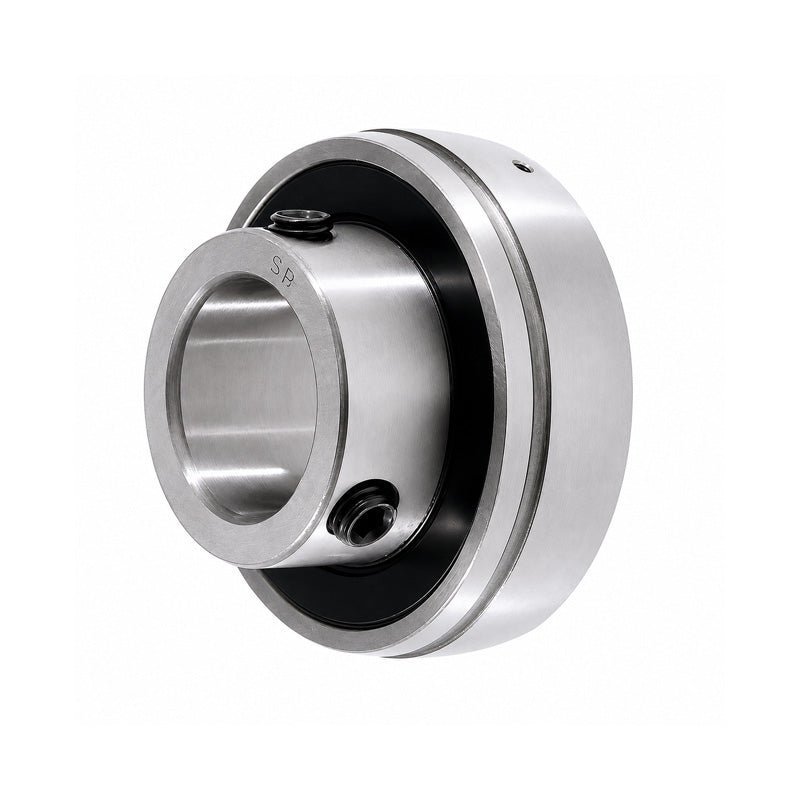

SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
€10,07
ex VAT
Regular price
Sale price
€10,07
ex VAT
In stock
Price Break
10+
€8,96
19+
€8,46
29+
€8,36
39+
€8,26
49+
€8,16
74+
€8,06
99+
€7,55
199+
€7,45
249+
€7,35
499+
€7,25
999+
€7,05
Couldn't load pickup availability
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
Technical
Technical
| Shaft Dia | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1000 kgf |
| Static Load | 630 kgf |
| Weight | 0.15kg |
