SKU: SS.SB205

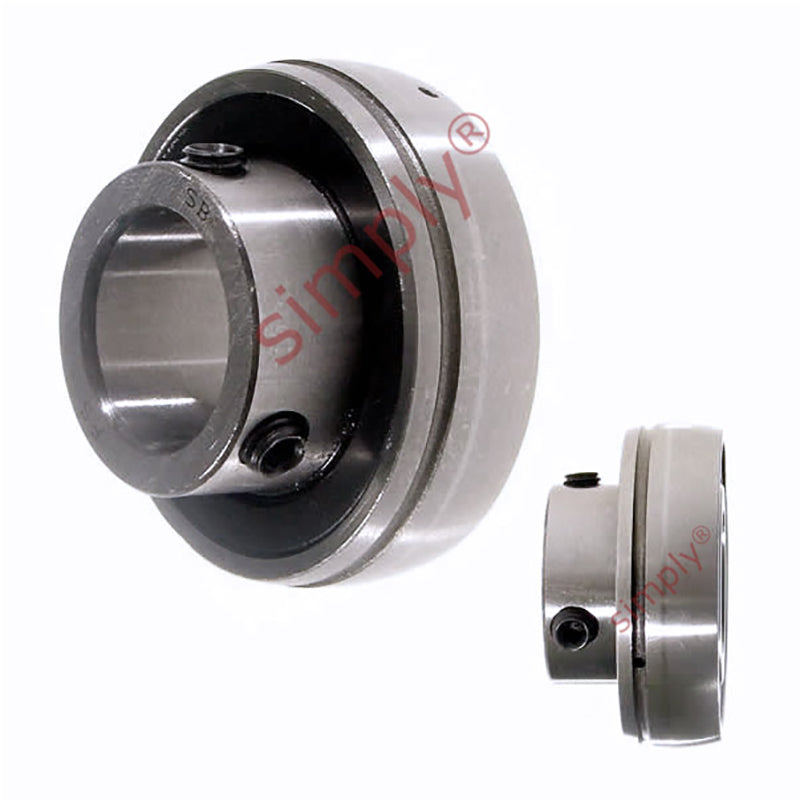

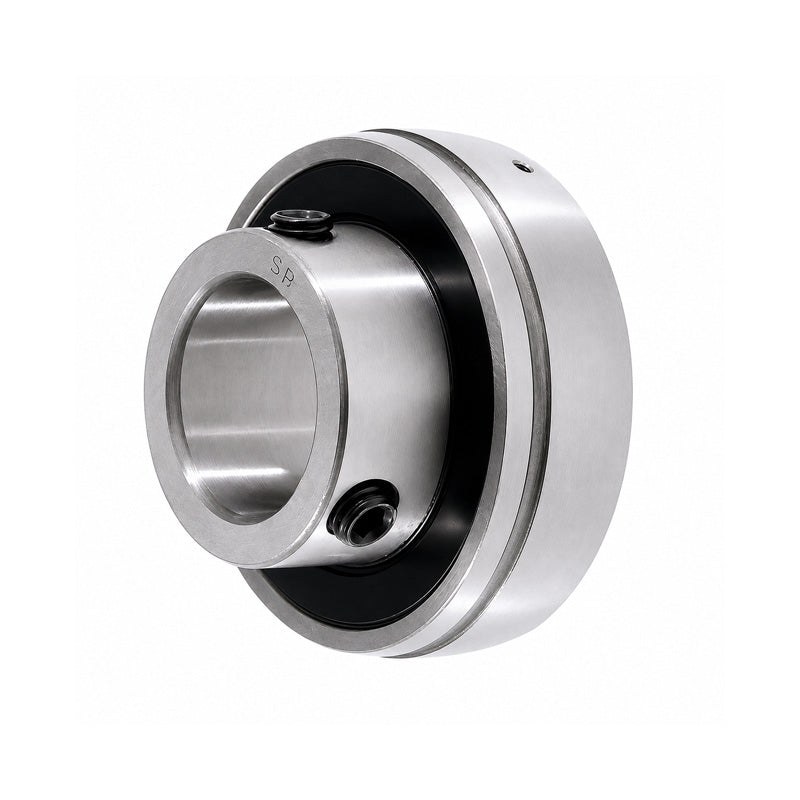

SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
SSSB205 Stainless Steel Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
3+
€12,20
5+
€11,52
9+
€11,38
19+
€11,24
49+
€11,11
74+
€10,97
99+
€10,28
199+
€10,15
249+
€10,01
499+
€9,87
999+
€9,60
Share this product
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| Shaft Dia | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1100 kgf |
| Static Load | 710 kgf |
| Weight | 0.18kg |
