SKU: SSUC.205-14

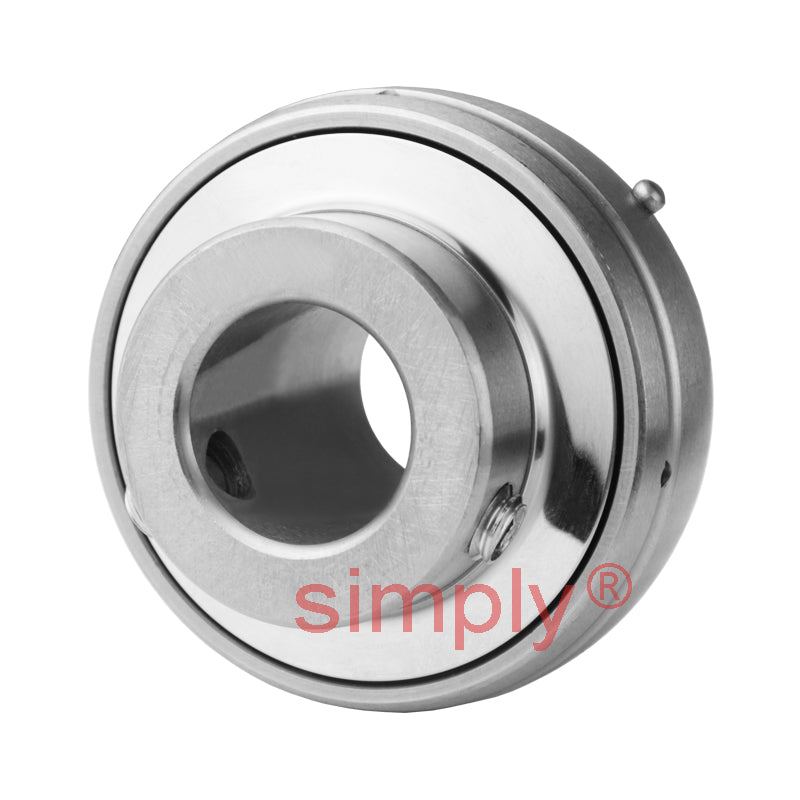

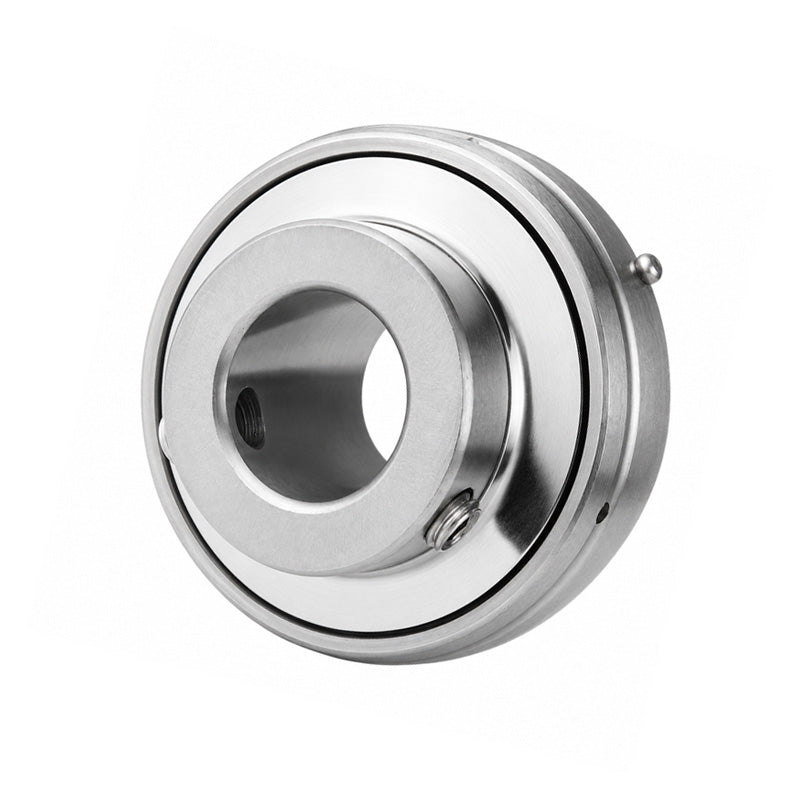

SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
In stock
Price Break
3+
€12,06
4+
€11,38
9+
€11,24
19+
€11,11
49+
€10,97
99+
€10,84
499+
€10,16
999+
€10,02
1999+
€9,89
2999+
€9,75
4999+
€9,48
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- SSUC
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.23 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
