SKU: SSUCP.204-12

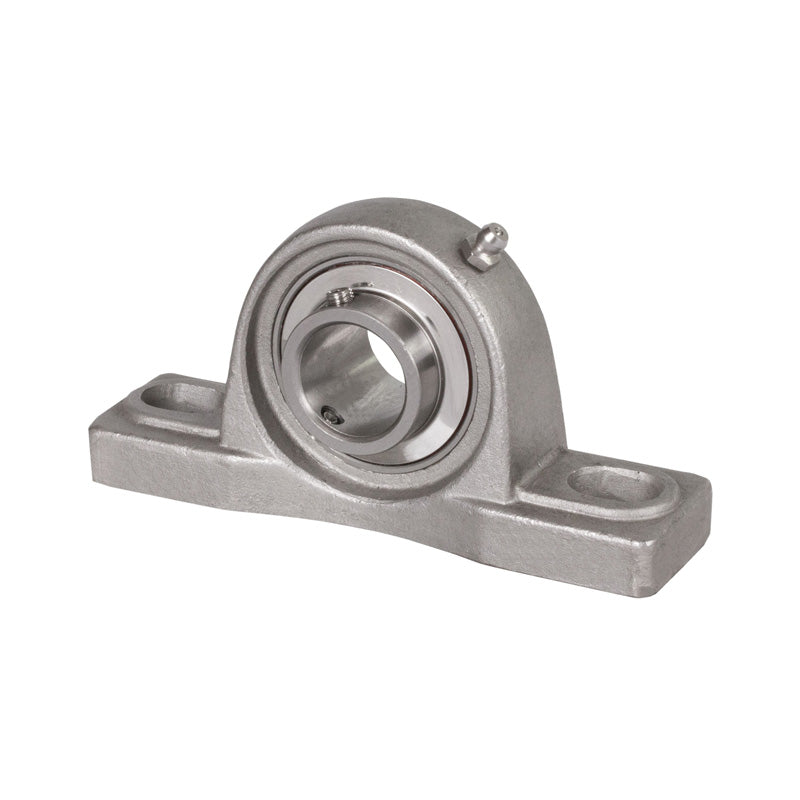

SSUCP204-12 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
SSUCP204-12 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
Regular price
€32,95
ex VAT
Regular price
Sale price
€32,95
ex VAT
Equivalent to: NP3/4
In stock
Price Break
3+
€24,42
4+
€23,05
9+
€22,78
19+
€22,50
49+
€22,23
99+
€21,95
499+
€20,58
999+
€20,31
1999+
€20,03
2999+
€19,76
4999+
€19,21
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP3/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| h | 33.3mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
