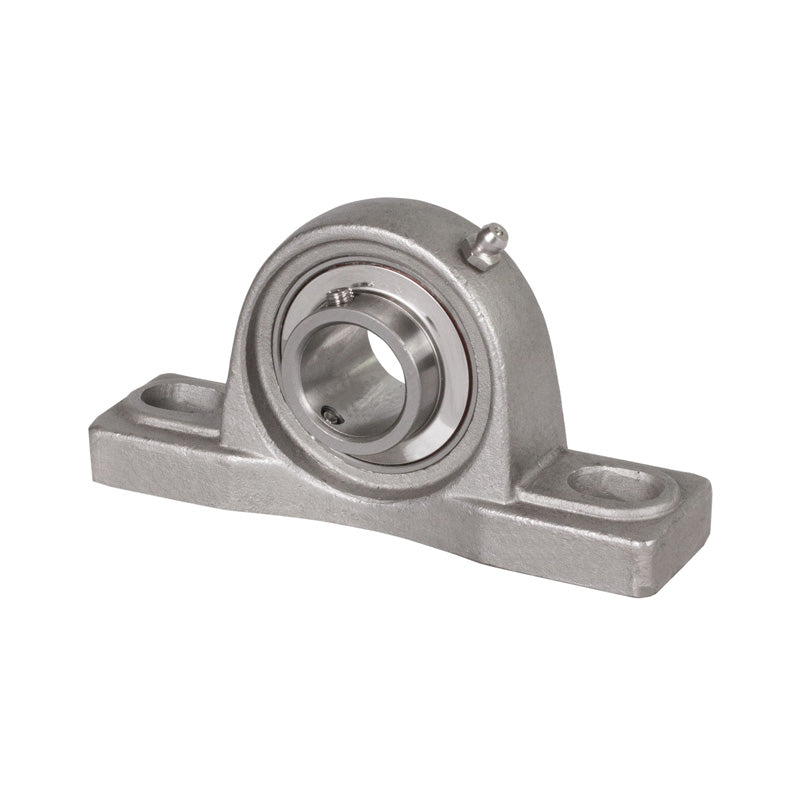

SSUCP205 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSUCP205 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
€23,95
ex VAT
Regular price
Sale price
€23,95
ex VAT
Equivalent to: NP25
In stock
Price Break
3+
€18,08
4+
€17,07
9+
€16,87
19+
€16,66
49+
€16,46
99+
€16,26
499+
€15,24
999+
€15,04
1999+
€14,83
2999+
€14,63
4999+
€14,22
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 36.5mm |
| a | 140mm |
| e | 105mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 16mm |
| w | 70mm |
| B1 | 34mm |
| n | 14.3mm |
| Bolt | 10mm |
| Weight | 0.62 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
