SKU: SSUCP.212

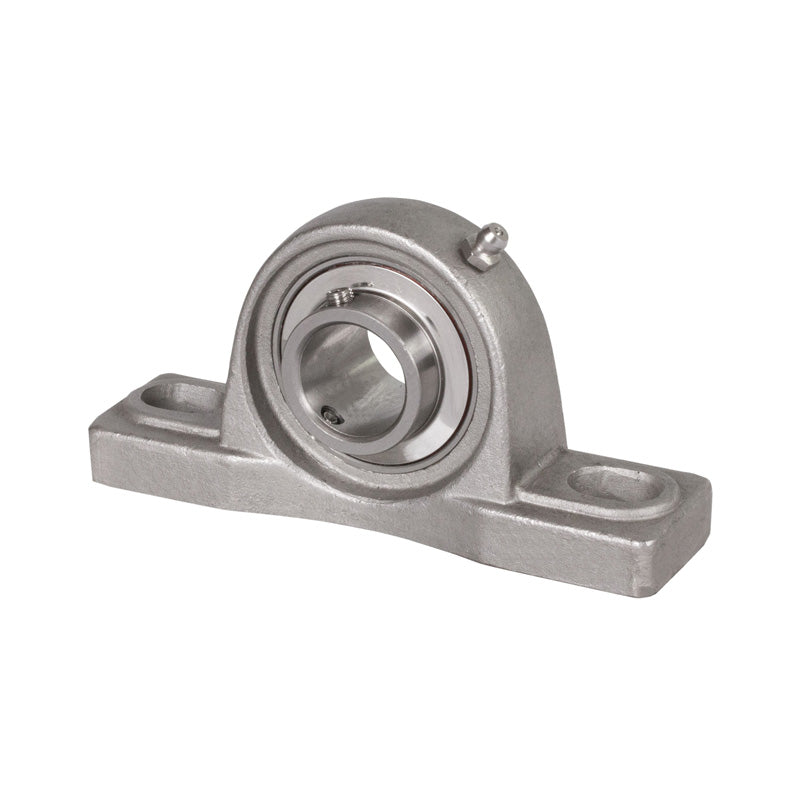

SSUCP212 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
SSUCP212 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
Regular price
€175,95
ex VAT
Regular price
Sale price
€175,95
ex VAT
Equivalent to: NP60
In stock
Price Break
3+
€133,76
4+
€126,25
9+
€124,75
19+
€123,24
49+
€121,74
99+
€120,24
499+
€112,72
999+
€111,22
1999+
€109,72
2999+
€108,21
4999+
€105,21
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP60
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 69.8mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 25mm |
| w | 137mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt | 16mm |
| Weight | 4.8 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
