SKU: SSUCT.204
SSUCT204 Metric Stainless Steel Take Up Unit Housing with 20mm Bore Stainless Insert
SSUCT204 Metric Stainless Steel Take Up Unit Housing with 20mm Bore Stainless Insert
Regular price
€66,95
ex VAT
Regular price
Sale price
€66,95
ex VAT
Equivalent to: ST20
In stock
Price Break
3+
€50,94
4+
€48,08
9+
€47,50
19+
€46,93
49+
€46,36
99+
€45,79
499+
€42,92
999+
€42,35
1999+
€41,78
2999+
€41,21
4999+
€40,06
Description
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: ST20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SSUCT

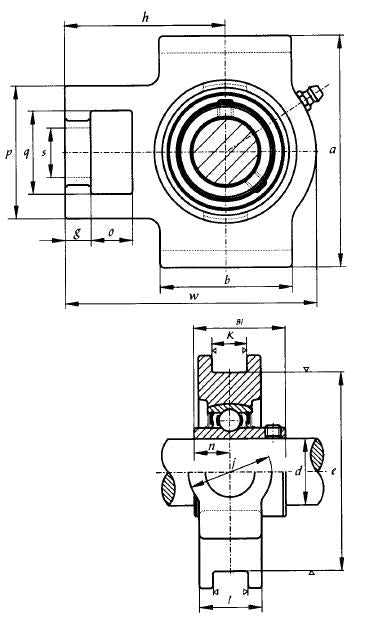

Technical
Technical
| d | 20mm |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19mm |
| b | 51mm |
| K | 12mm |
| e | 76mm |
| a | 89mm |
| w | 94mm |
| j | 32mm |
| l | 21mm |
| h | 61mm |
| Bi | 31mm |
| n | 12.7mm |
| Weight | 0.79 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
