SKU: ST1.1/2-RHP

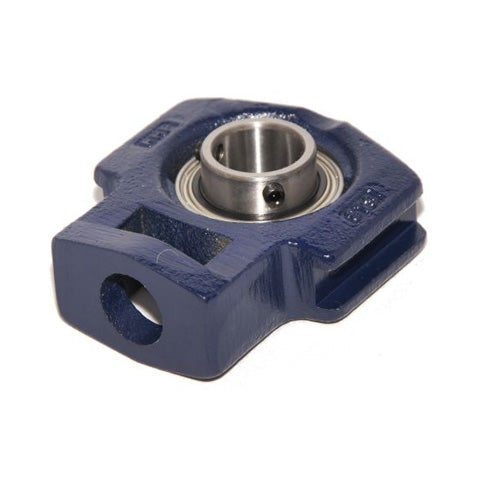

RHP ST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert

RHP ST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
Regular price €89,95 ex VAT
Regular price Sale price €89,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €67,81
20+ €64,00
30+ €63,24
40+ €62,48
50+ €61,71
75+ €60,95
100+ €57,14
200+ €56,38
250+ €55,62
500+ €54,86
1000+ €53,33
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/2 inch
L 5.65 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
