SKU: ST1.15/16EC-RHP

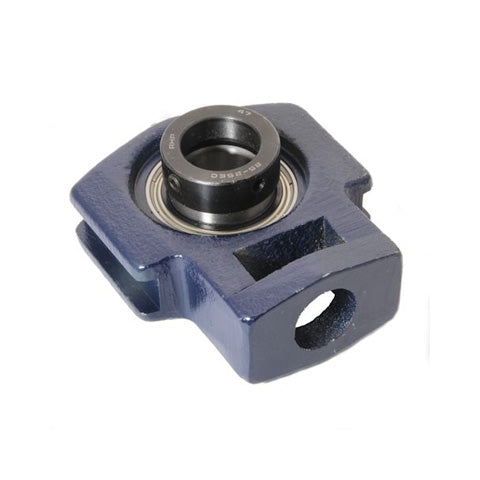

RHP ST1-15/16EC Cast Iron Take Up Unit and 1-15/16 inch Bore Insert

RHP ST1-15/16EC Cast Iron Take Up Unit and 1-15/16 inch Bore Insert
Regular price €120,95 ex VAT
Regular price Sale price €120,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €91,70
20+ €86,54
30+ €85,51
40+ €84,48
50+ €83,45
75+ €82,42
100+ €77,27
200+ €76,24
250+ €75,21
500+ €74,18
1000+ €72,12
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-15/16 inch
L 5.945 inch
L1 3.563 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B2 1.718 inch
s1 0.435 inch
d2 2.75 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-1-15/16ECG+insonly">1250-1-15/16ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
