SKU: ST1.3/4DEC-RHP

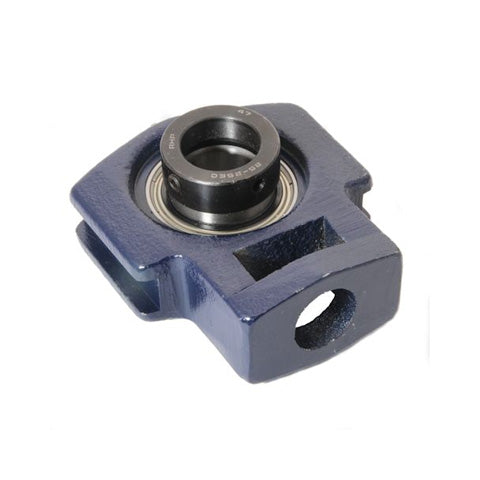

RHP ST1-3/4DEC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert

RHP ST1-3/4DEC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
Regular price €121,95 ex VAT
Regular price Sale price €121,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €92,27
20+ €87,09
30+ €86,05
40+ €85,01
50+ €83,98
75+ €82,94
100+ €77,76
200+ €76,72
250+ €75,68
500+ €74,65
1000+ €72,57
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B3 2.218 inch
s2 0.845 inch
d2 2.5 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-3/4DECG+insonly">1045-1-3/4DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
