SKU: ST1.3/4EC-RHP

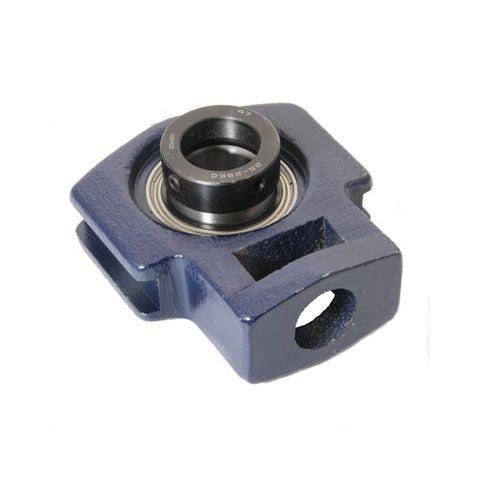

RHP ST1-3/4EC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert

RHP ST1-3/4EC Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
Regular price €110,95 ex VAT
Regular price Sale price €110,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €84,50
20+ €79,75
30+ €78,80
40+ €77,85
50+ €76,90
75+ €75,95
100+ €71,21
200+ €70,26
250+ €69,31
500+ €68,36
1000+ €66,46
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 5.787 inch
L1 3.512 inch
L2 0.61 inch
L3 0.807 inch
L4 3.209 inch
L5 1.988 inch
H 4.646 inch
H1 3.248 inch
H2 1.949 inch
H3 3.976 inch
N 1.142 inch
A 1.949 inch
A1 1.457 inch
A2 0.689 inch
B2 1.718 inch
s1 0.435 inch
d2 2.5 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1245-1-3/4ECG+insonly">1245-1-3/4ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
