SKU: ST1EC-RHP

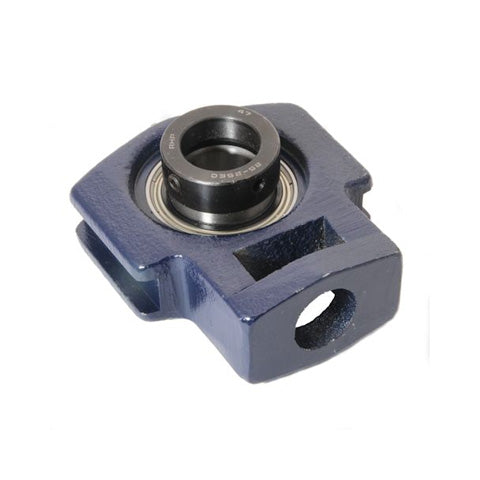

RHP ST1EC Cast Iron Take Up Unit and 1 inch Bore Insert
RHP ST1EC Cast Iron Take Up Unit and 1 inch Bore Insert
Regular price
€57,95
ex VAT
Regular price
Sale price
€57,95
ex VAT
In stock
Price Break
10+
€43,59
20+
€41,14
30+
€40,65
40+
€40,16
50+
€39,67
75+
€39,18
100+
€36,73
200+
€36,24
250+
€35,75
500+
€35,26
1000+
€34,28
Share this product
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- ST
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.858 inch |
| L1 | 2.441 inch |
| L2 | 0.453 inch |
| L3 | 0.63 inch |
| L4 | 1.988 inch |
| L5 | 1.437 inch |
| H | 3.484 inch |
| H1 | 2.303 inch |
| H2 | 1.26 inch |
| H3 | 2.992 inch |
| N | 0.886 inch |
| A | 1.417 inch |
| A1 | 1.083 inch |
| A2 | 0.531 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
