SKU: ST35-RHP

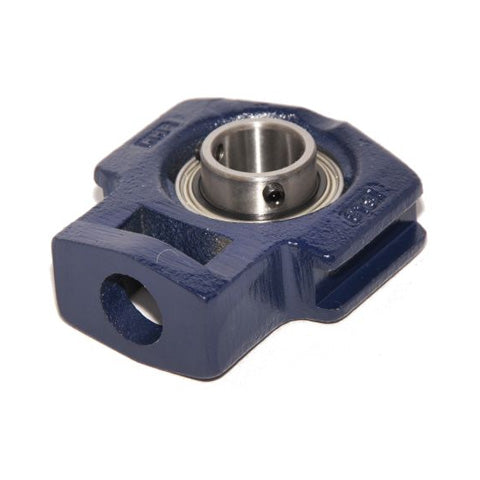

RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert

RHP ST35 Cast Iron Take Up Unit and 35mm Bore Insert
Regular price €71,95 ex VAT
Regular price Sale price €71,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €54,73
20+ €51,65
30+ €51,04
40+ €50,42
50+ €49,81
75+ €49,19
100+ €46,12
200+ €45,50
250+ €44,89
500+ €44,27
1000+ €43,04
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

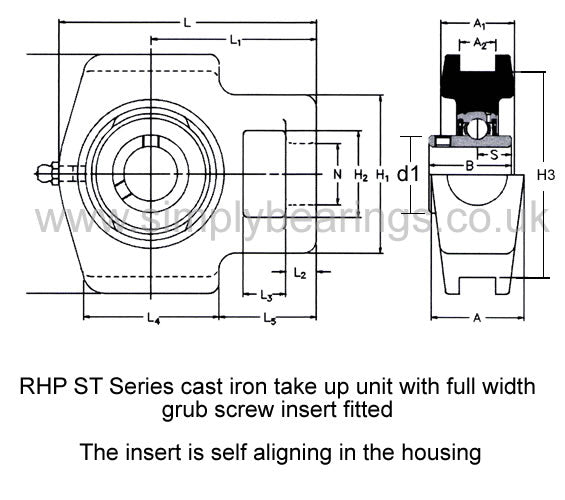

Technical
Bore 35mm
L 124mm
L1 75.5mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B 42.88mm
s 17.53mm
d1 46.69mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
