SKU: ST35EC-RHP

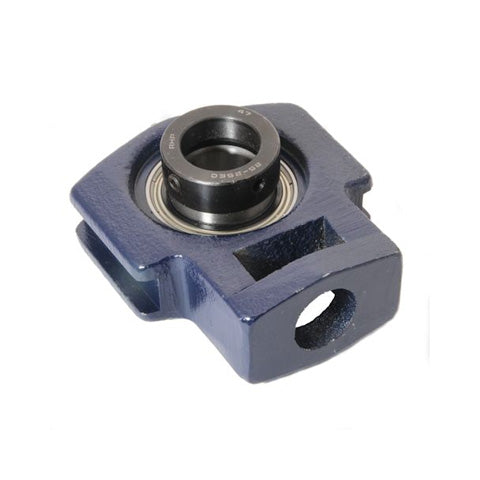

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
Regular price
€75,95
ex VAT
Regular price
Sale price
€75,95
ex VAT
In stock
Price Break
10+
€57,16
20+
€53,95
30+
€53,31
40+
€52,67
50+
€52,03
75+
€51,38
100+
€48,17
200+
€47,53
250+
€46,89
500+
€46,25
1000+
€44,96
Share this product
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- ST
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
