SKU: ST45-RHP

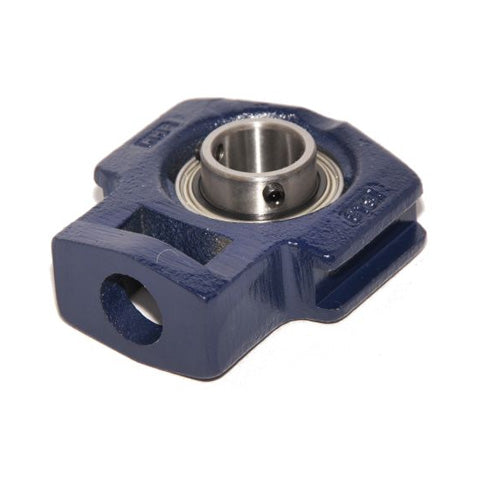

RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
RHP ST45 Cast Iron Take Up Unit and 45mm Bore Insert
Regular price
€94,95
ex VAT
Regular price
Sale price
€94,95
ex VAT
In stock
Price Break
10+
€72,07
20+
€68,02
30+
€67,21
40+
€66,40
50+
€65,59
75+
€64,78
100+
€60,73
200+
€59,92
250+
€59,11
500+
€58,30
1000+
€56,68
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- ST
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 147mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
